HORN R105.VPM6.3.6 TH35 stg. 1,0 · JR Tool

Threading metric ISO thread (internal), full profile

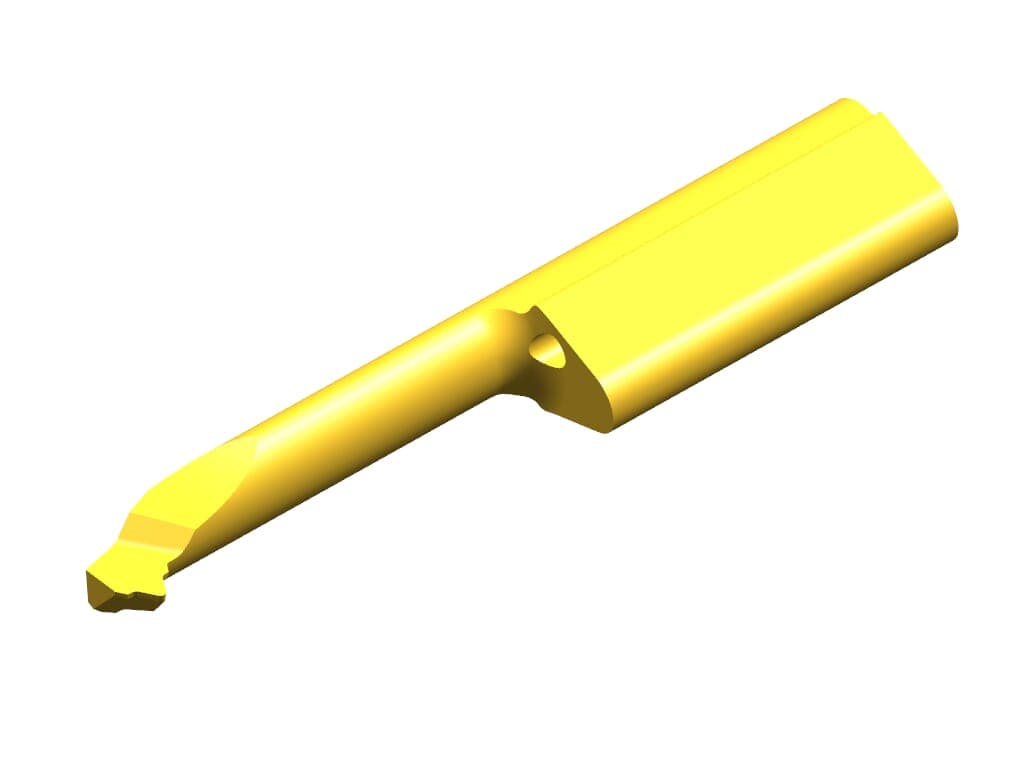

HORN R105.VPM6.3.6 TH35 stg. 1,0

Varenr.: HR105VPM636TH35

HORN R105.VPM6.3.6 TH35 stg. 1,0

Tekniske billeder


60° thread

Tekniske specifikationer
Cutting insert total length (l5)	35
Cutting insert width (a)	4.5
Neck diameter (d)	3.4
Neck length (l2)	20
Number of teeth (Z)	1
Pitch (P)	1
Setting length (E)	0.5
Smallest bore diameter (Da min)	4.9

Tekniske filer

Henter tekniske filer …

Kategorier:Threading metric ISO thread (internal), full profile
