| _application | /conversions/R10618311005_PICTO.JPG |
|---|---|
| _icon | innen_bohrung_kontur_ausdrehen.jpg |
| _download | /documents/R1061831102_20210628_180639363.DXF; /documents/R1061831102_20230113_215120306.STP |
| _drawing | /conversions/106R_20161108_115105657.JPG |

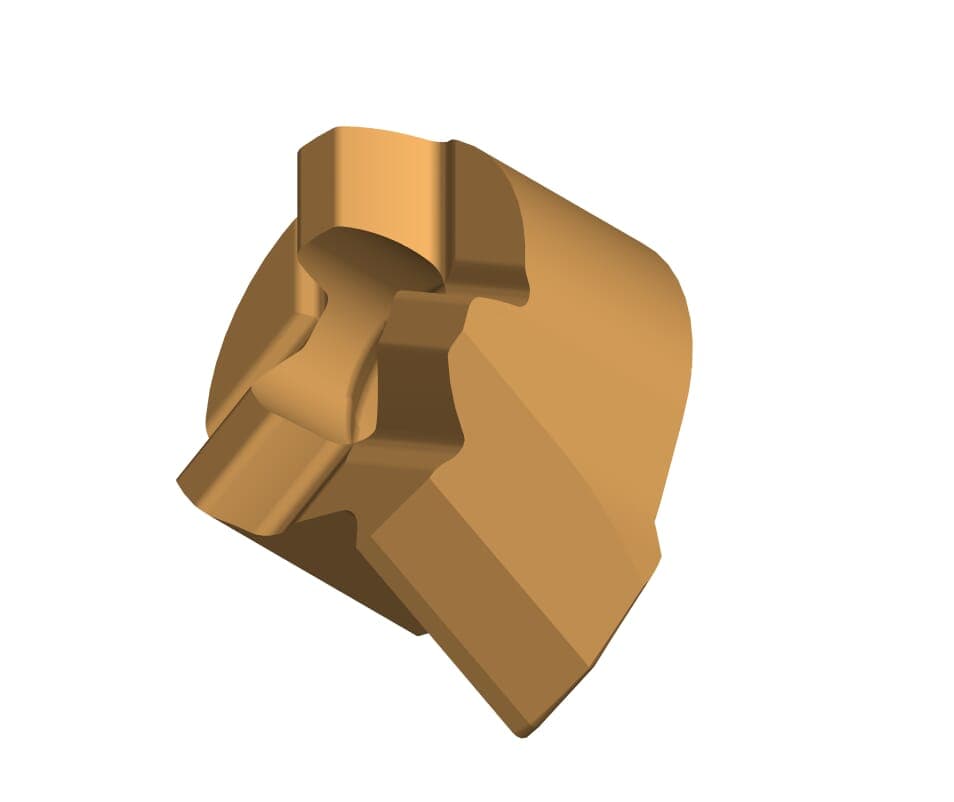

| _main_image | /conversions/R1061831102.JPG |
| Cutting insert height, Cutting insert thickness (s) | 2.8 |
| eclass shortcut | 21-18-20-11 |
| eclass | 21-18-20-11:Wechselplatte (ADR158005) |
| DIN_SSC | HORN-30404484R |
| ISO-SSC | HORN304044$84R$$$$$ |
| Katalog-SSC | 304044R |
| Head size (a) | 5.4 |
| productnr-sap | R1061831102TH35 |
| Top radius (r) | 0.2 |
| Smallest bore diameter (Da min) | 6 |
| Tooth diameter, head diameter (d) | 4.4 |
