Threading, metric ISO thread (internal), partial profile, Bore Ø from 7 mm

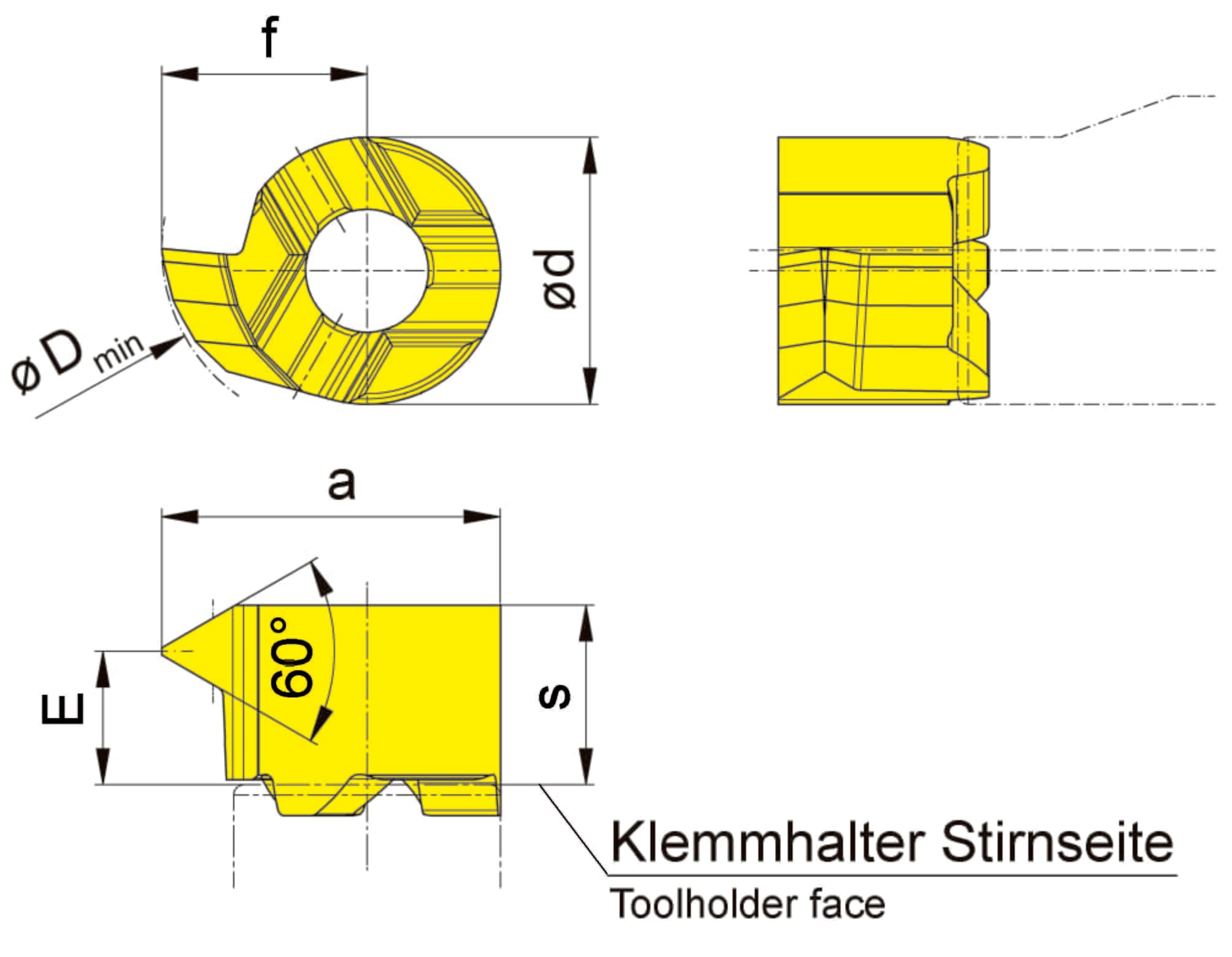

1 / 2: HORN R107.0205.1.01 TH35
60° thread
Internal thread
Partial profile thread| Cutting insert width (a) | 6.6 |
|---|---|
| Cutting insert height, Cutting insert thickness (s) | 3.5 |
| Maximum pitch (Pmax) |
Henter tekniske filer …
Kategorier:Threading, metric ISO thread (internal), partial profile, Bore Ø from 7 mm
Henter matchende værktøj…
| 0.75 |
| Pitch (P) | 0.5 |
|---|
| Setting length (E) | 3 |
|---|
| Smallest bore diameter (Da min) | 7 |
|---|
| Tooth diameter, head diameter (d) | 5.2 |
|---|
