Inserts 107 - Chamfering and back turning
1 / 2: HORN R107.4545.1.02 EG55
Internal back turning
Internal chamfering
Internal grooving with chamfer
Internal profiling and chamferingHenter tekniske filer …
Kategorier:Inserts 107 - Chamfering and back turning
Henter matchende værktøj…

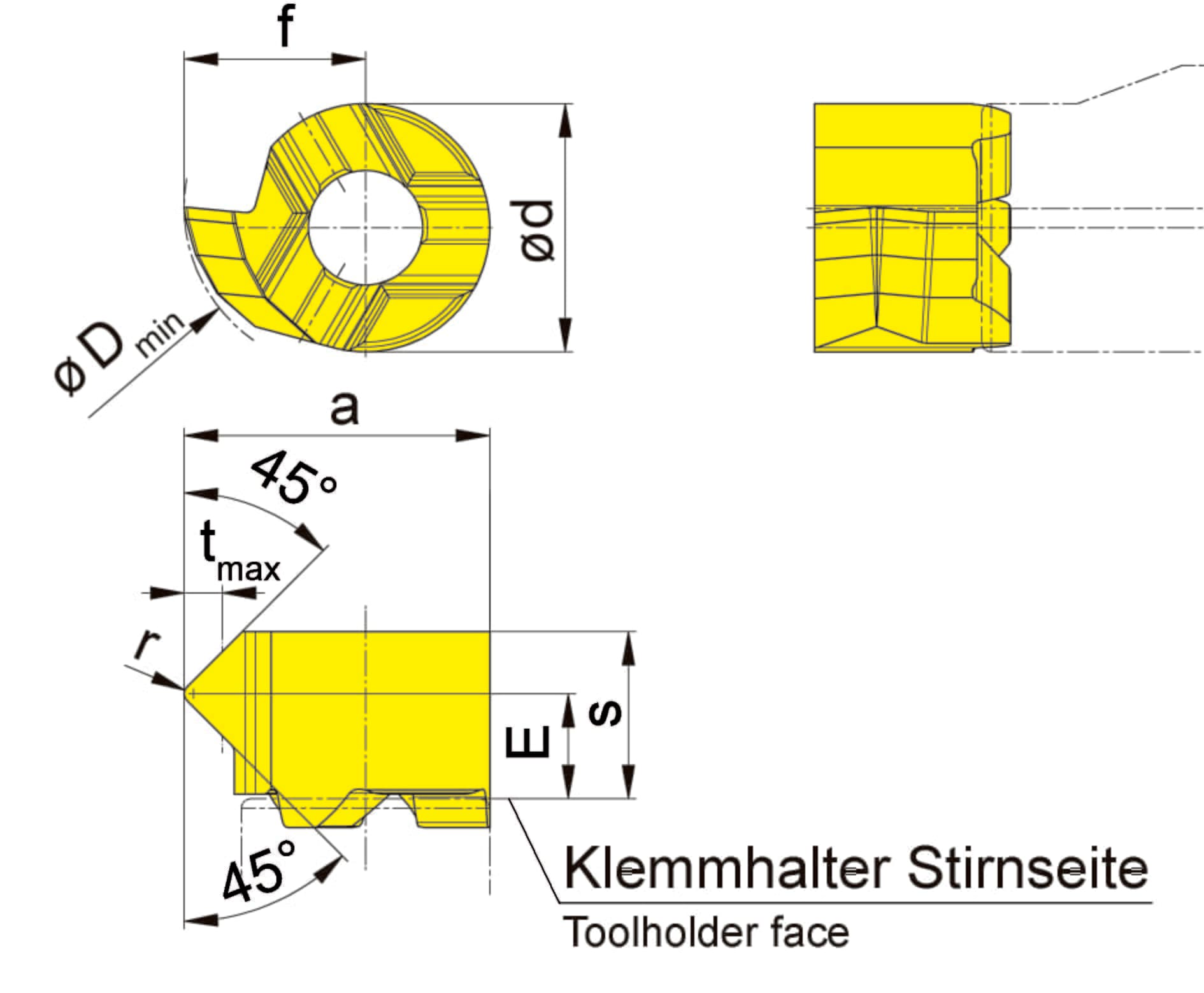

| Cutting insert height, Cutting insert thickness (s) | 3.5 |
|---|
| Head size (a) | 6.4 |
|---|
| Maximum depth of groove (tmax) | 0.8 |
|---|
| Setting length (E) | 2.2 |
|---|
| Smallest bore diameter (Da min) | 6.8 |
|---|
| Tooth diameter, head diameter (d) | 5.2 |
|---|
| Top radius (r) | 0.2 |
|---|
