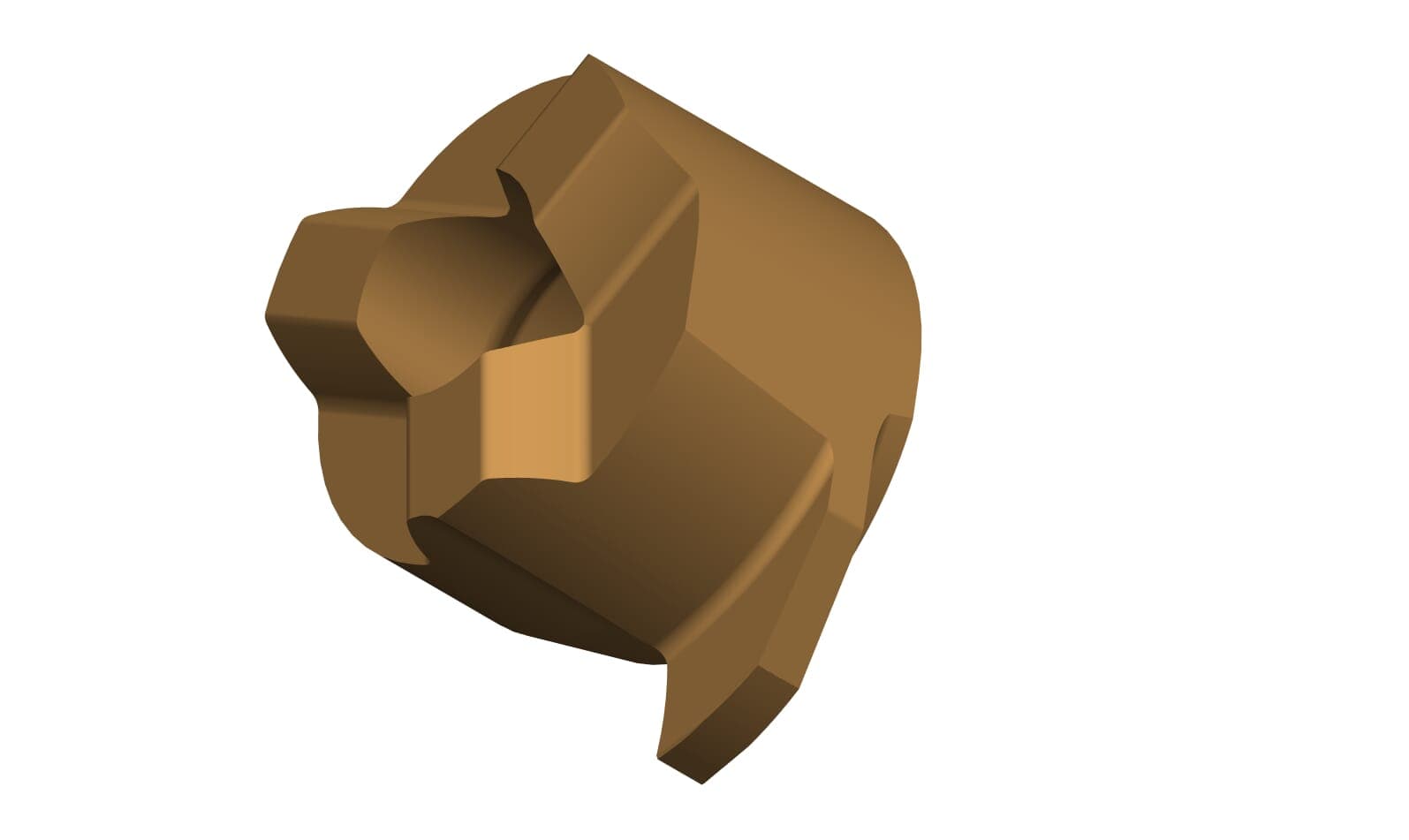

1 / 2: HORN R108.0070.00 TH35
Circlip grooves| Cutting insert thickness to cutting edge, setting | 3.2 |
|---|---|
| Cutting insert width (a) | 7.8 |
| Cutting diameter (Ds) | 9.6 |
| Cutting insert thickness to cutting edge, setting | 3.6 |
| Maximum milling depth (tmax) | 1 |
| Nominal range (Nw) | 0.7 |
| Number of teeth (Z) | 1 |
Henter tekniske filer …
Kategorier:Inserts 108
Henter matchende værktøj…
| Smallest bore diameter (Da min) |
|---|
| 8 |
| Tooth diameter, head diameter (d) | 6 |
|---|
| Width of groove (w) | 0.74 |
|---|
| number-of-teeth | 1 |
|---|
