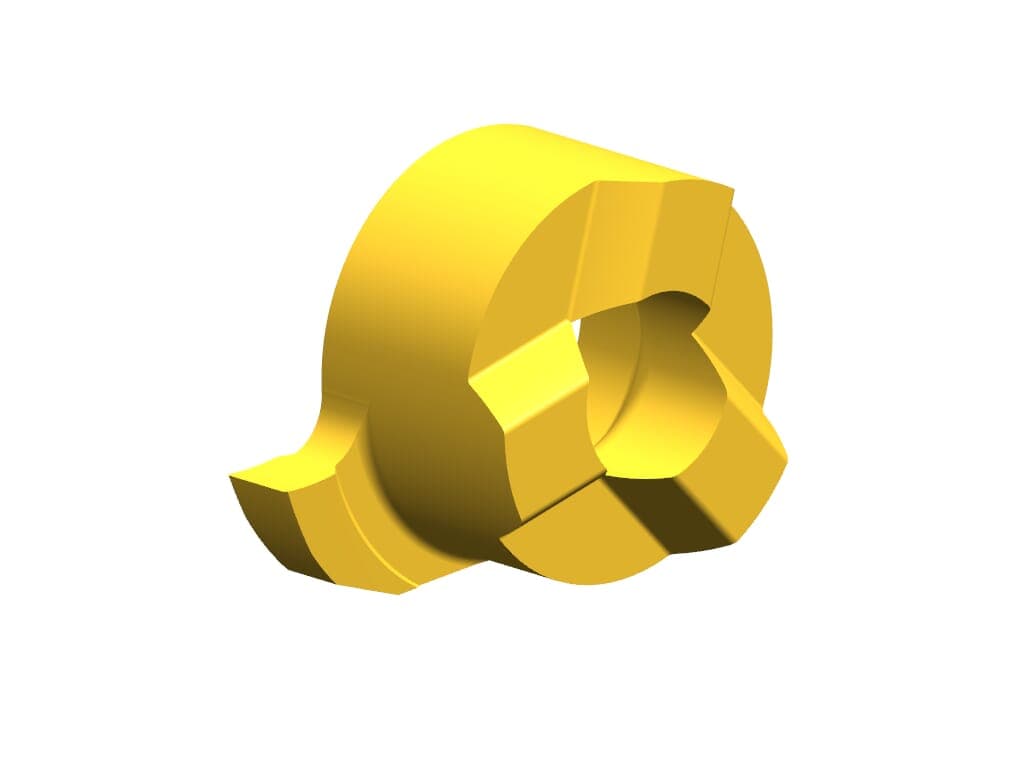

1 / 2: HORN R108.0110.00 TN35
Circlip grooves| Cutting diameter (Ds) | 9.6 |
|---|---|
| Cutting insert height, Cutting insert thickness (s) | 3.2 |
| Head size (a) | 7.8 |
| Maximum depth of groove (tmax) | 1 |
| Nominal range (Nw) | 1.1 |
| Number of teeth (Z) | 1 |
| Smallest bore diameter (Da min) | 8 |
| Tooth diameter, head diameter (d) |
Henter tekniske filer …
Kategorier:Inserts 108 - Grooving
Henter matchende værktøj…
| 6 |
| Width of groove (w) | 1.19 |
|---|
| number-of-teeth | 1 |
|---|
