Inserts 108 - National pipe thread/Steel conduit thread

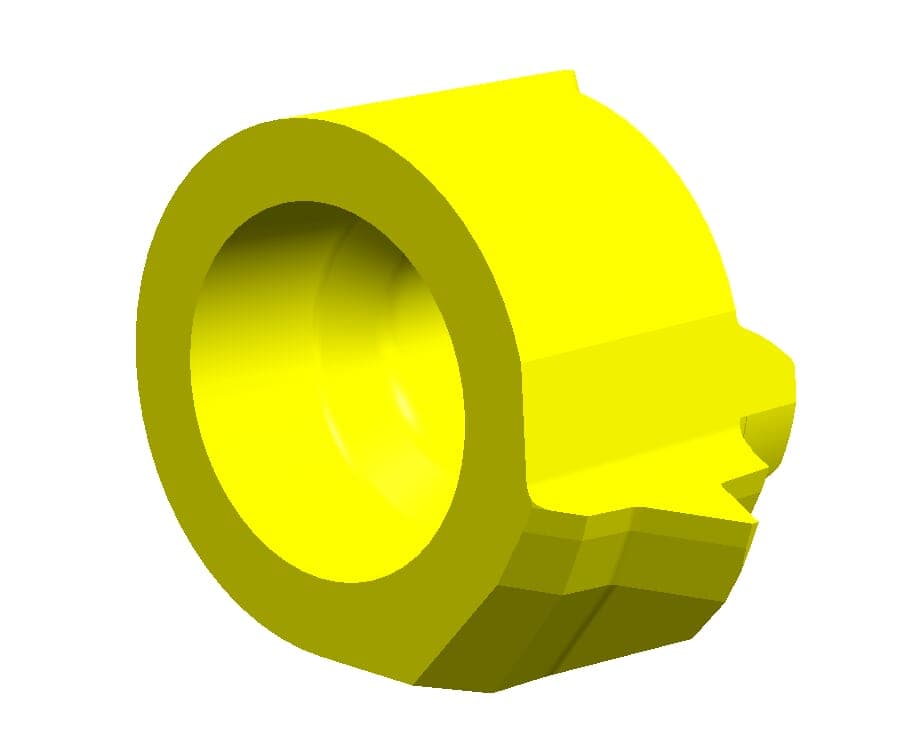

1 / 2: HORN R108.NP18.02 TN35
Full profile thread
Internal thread
NPT/NPTF thread| Cutting insert width (a) | 7.8 |
|---|---|
| Cutting insert height, Cutting insert thickness (s) | 3.6 |
| Number of teeth (Z) |
Henter tekniske filer …
Kategorier:Inserts 108 - National pipe thread/Steel conduit thread
Henter matchende værktøj…
| 1 |
| Setting length (E) | 1.9 |
|---|
| Smallest bore diameter (Da min) | 8 |
|---|
| Threads per inch (TPI) | 18 |
|---|
| Tooth diameter, head diameter (d) | 6 |
|---|
