Inserts 109 for threading metric ISO thread (internal), partial profile

HORN R109.0815.3.7 TH35

Varenr.: HR109081537TH35

HORN R109.0815.3.7 TH35

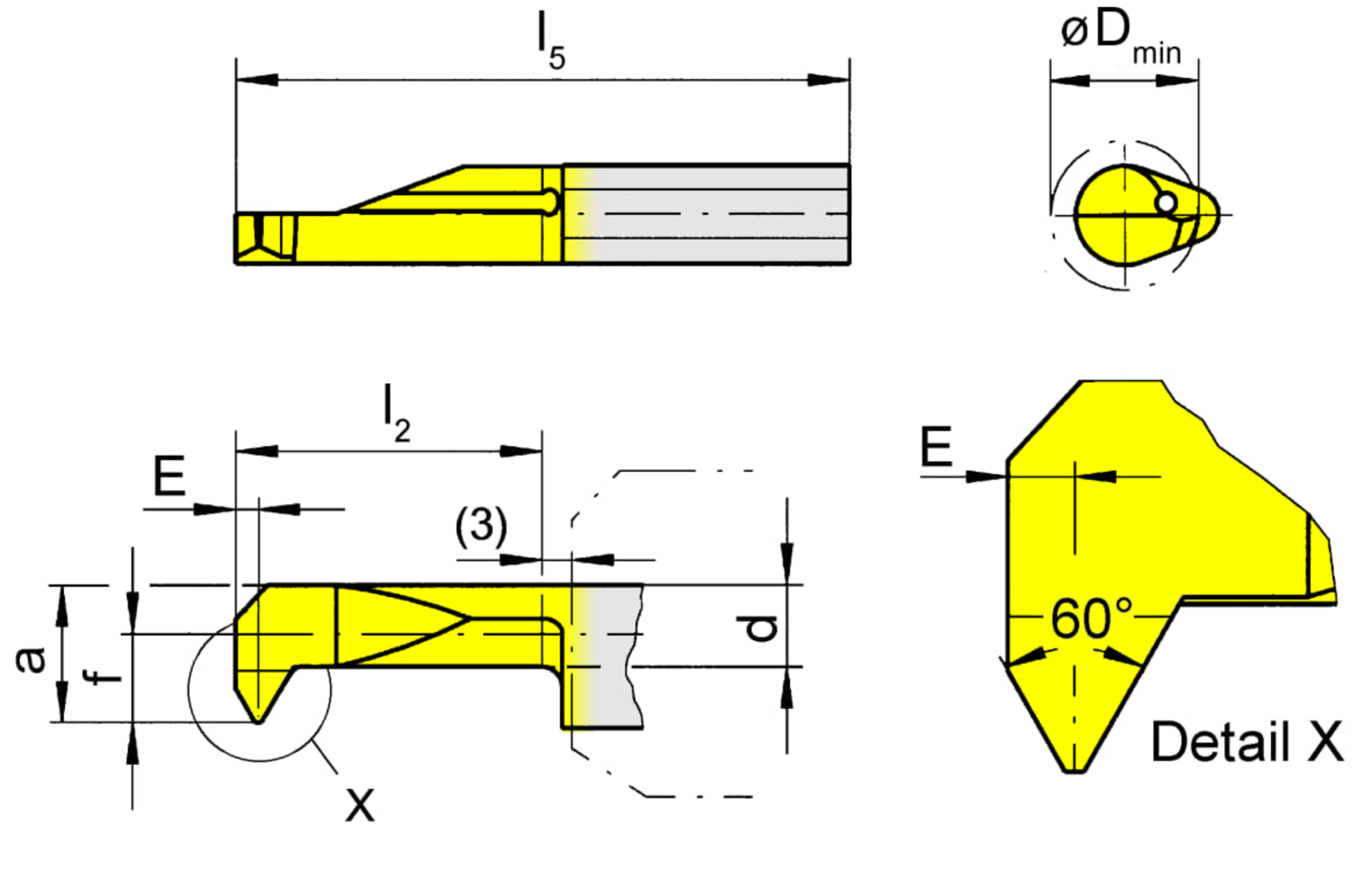

Tekniske billeder


60° thread
Internal thread
Partial profile thread

Internal cooling

Tekniske filer

Henter tekniske filer …

Kategorier:Inserts 109 for threading metric ISO thread (internal), partial profile

Matchende værktøj

Henter matchende værktøj…

Cutting insert total length (l5)	38
Cutting insert width (a)	6.7
Maximum pitch (Pmax)	1.75
Neck diameter (d)	5.1
Neck length (l2)	20
Number of teeth (Z)	1
Pitch (P)	1.5
Setting length (E)	0.9
Smallest bore diameter (Da min)	7
