Inserts 109 for threading metric ISO thread (internal), partial profile

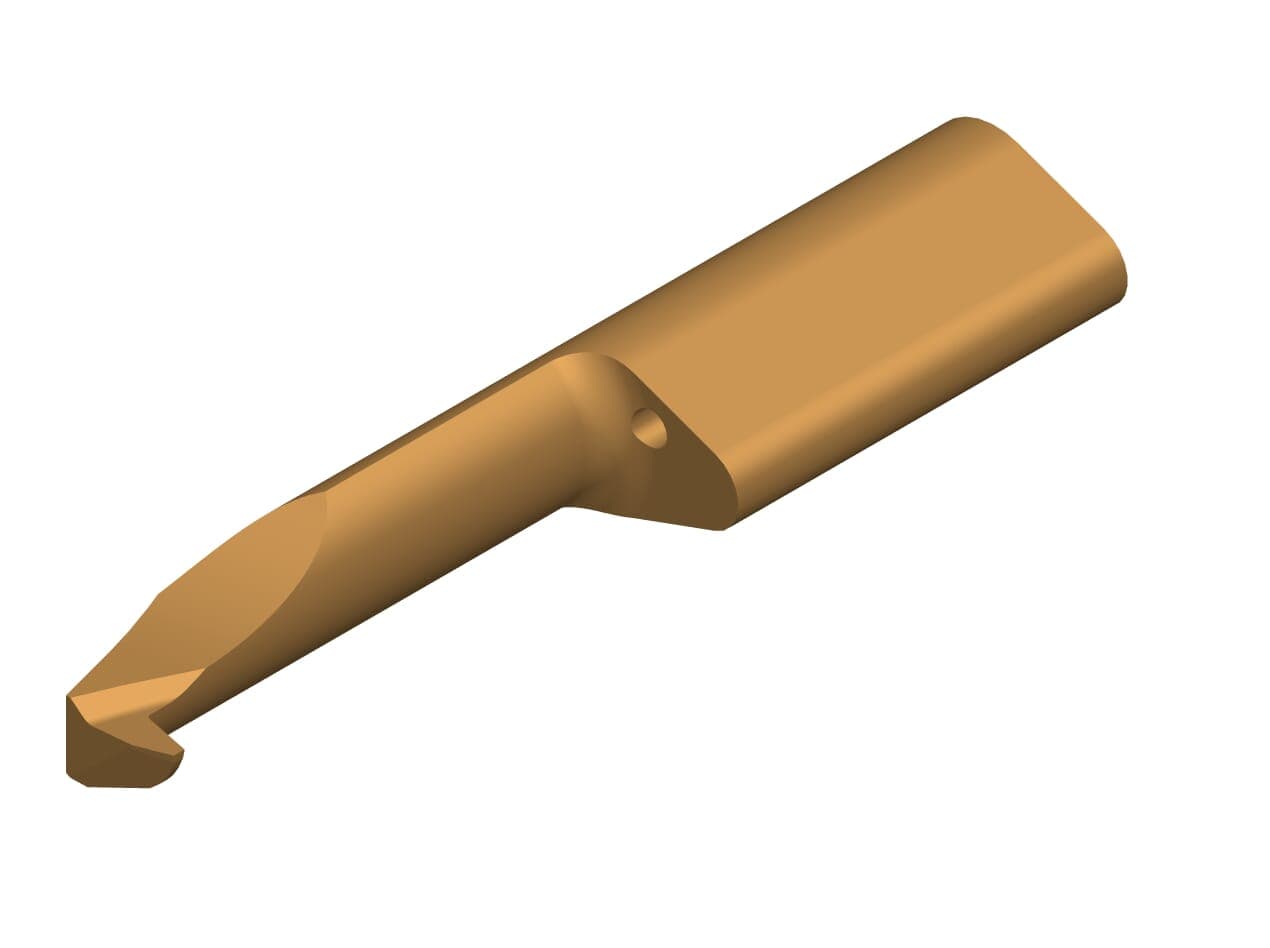

1 / 2: HORN R109.0915.3.6 TH35
Trapezoidal/Acme thread| Cutting insert total length (l5) | 38 |
|---|---|
| Cutting insert width (a) | 5.7 |
| Neck diameter (d) | 3.5 |
| Neck length (l2) | 20 |
| Number of teeth (Z) | 1 |
| Pitch (P) | 1.5 |
| Setting length (E) | 0.6 |
| Smallest bore diameter (Da min) |
Henter tekniske filer …
Kategorier:Inserts 109 for threading metric ISO thread (internal), partial profile
Henter matchende værktøj…
| 6 |
