Inserts 109 for threading metric ISO thread (internal), partial profile

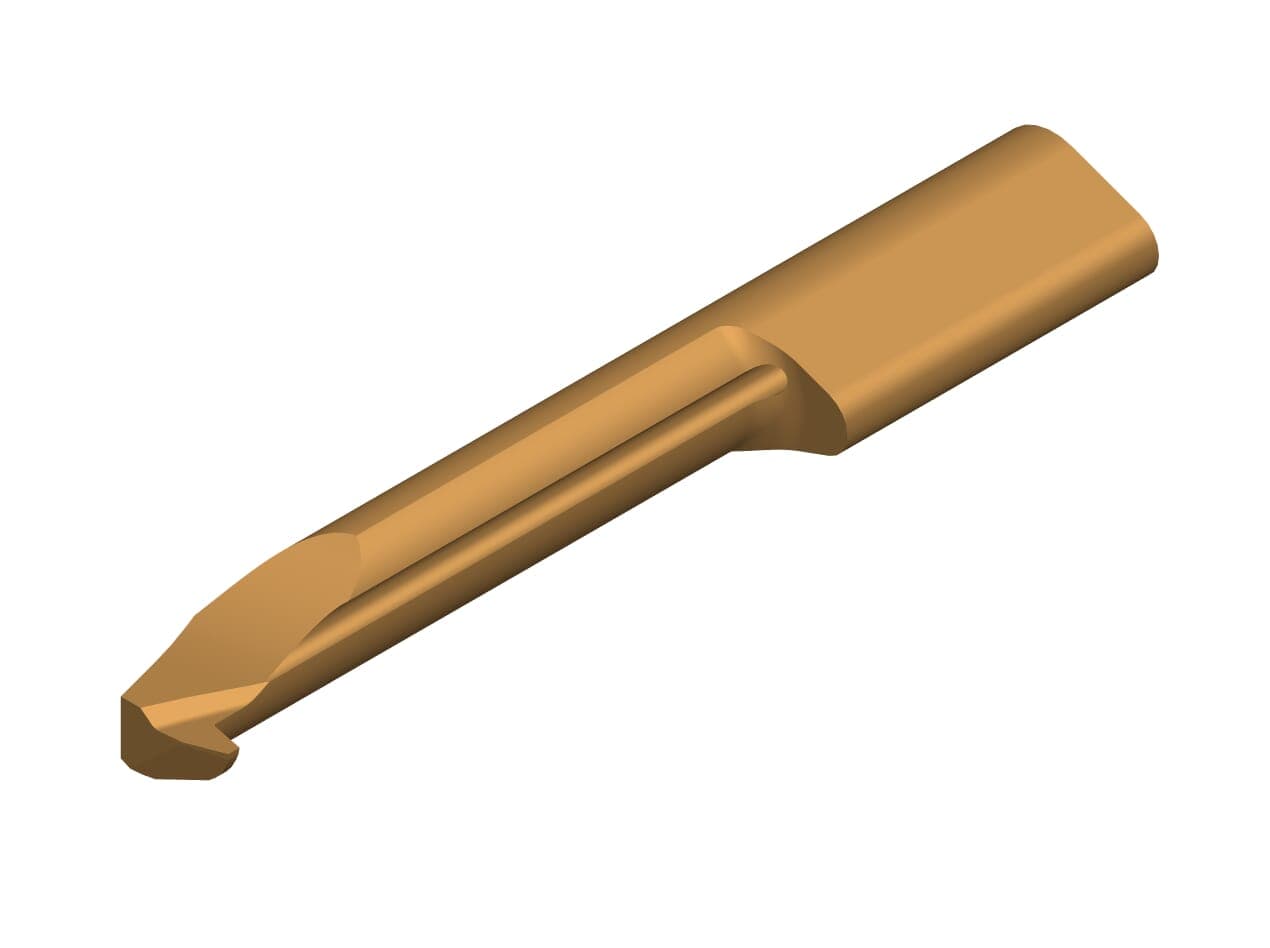

1 / 2: HORN R109.1220.5.7 TH35
Internal thread
Partial profile thread
Trapezoidal/Acme thread
Internal coolingHenter tekniske filer …
Kategorier:Inserts 109 for threading metric ISO thread (internal), partial profile
Henter matchende værktøj…
| Cutting insert total length (l5) | 48 |
|---|---|
| Cutting insert width (a) | 6.7 |
| Neck diameter (d) | 4.8 |
| Neck length (l2) | 30 |
| Number of teeth (Z) | 1 |
| Pitch (P) | 2 |
| Setting length (E) | 0.8 |
| Smallest bore diameter (Da min) | 7 |
