Inserts 109 for internal boring from diameter 6.0 mm with geometry .HV6

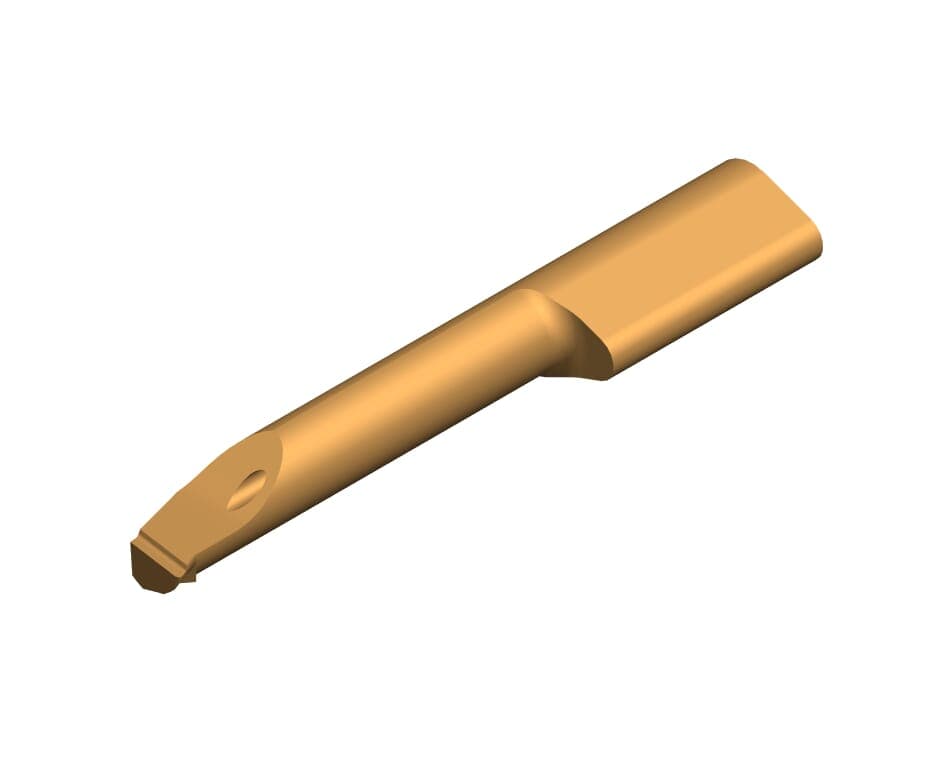

1 / 2: HORN R109.1828.1.HV6 TH35
Internal boring
Geometry HV
Internal cooling| Head size (a) | 5.7 |
|---|---|
| Maximum depth of groove (tmax) | 0.4 |
Henter tekniske filer …
Kategorier:Inserts 109 for internal boring from diameter 6.0 mm with geometry .HV6
Henter matchende værktøj…
| Neck diameter (d) | 5 |
|---|
| Neck length (l2) | 10 |
|---|
| Smallest bore diameter (Da min) | 6 |
|---|
| Top radius (r) | 0.2 |
|---|
| Total length (l) | 28 |
|---|
| Total length (l5) | 28 |
|---|
