Inserts 109 for internal boring from diameter 6.0 mm with geometry .HV7

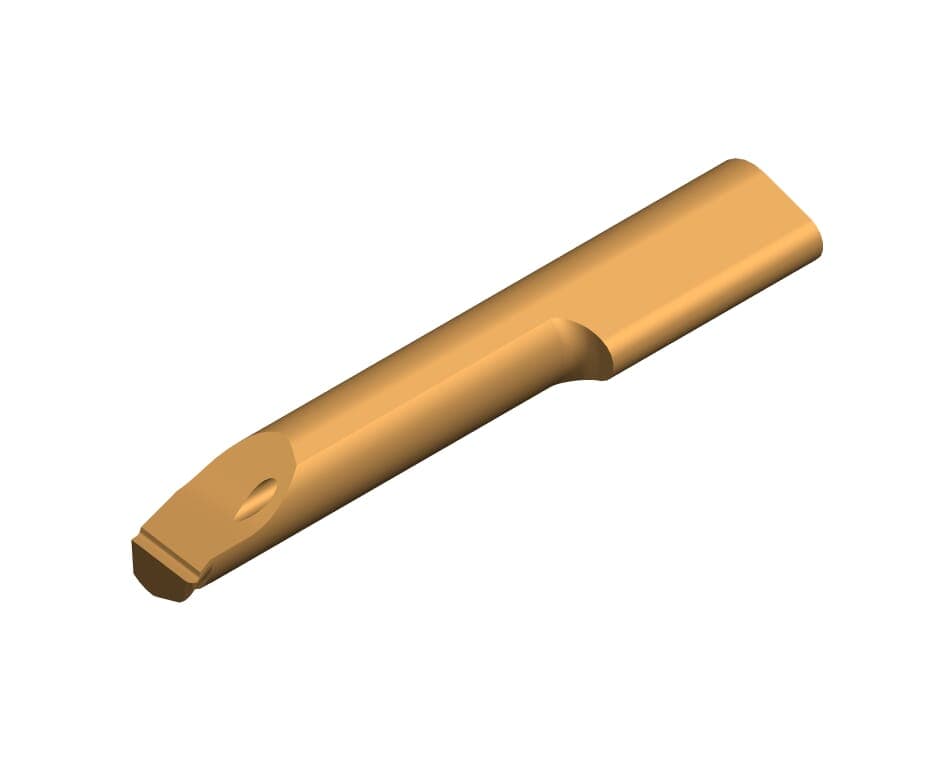

1 / 2: HORN R109.1838.04.7 HV7 TH35
Internal boring
Geometry HV

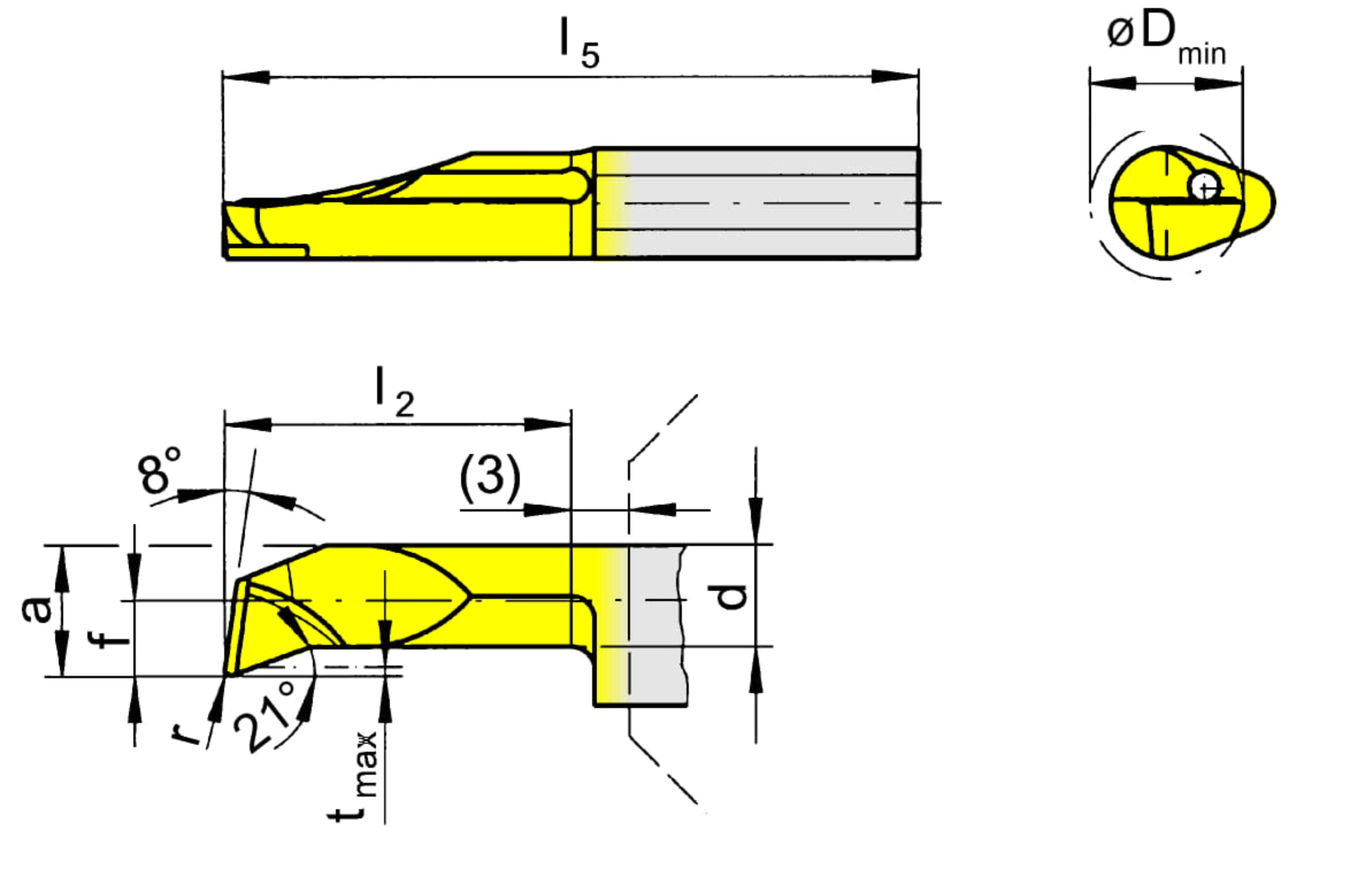

Internal cooling| Head size (a) | 6.7 |
|---|---|
| Maximum depth of groove (tmax) | 0.4 |
Henter tekniske filer …
Kategorier:Inserts 109 for internal boring from diameter 6.0 mm with geometry .HV7
Henter matchende værktøj…
| Neck diameter (d) | 6 |
|---|
| Neck length (l2) | 40 |
|---|
| Smallest bore diameter (Da min) | 7 |
|---|
| Top radius (r) | 0.4 |
|---|
| Total length (l) | 58 |
|---|
| Total length (l5) | 58 |
|---|
