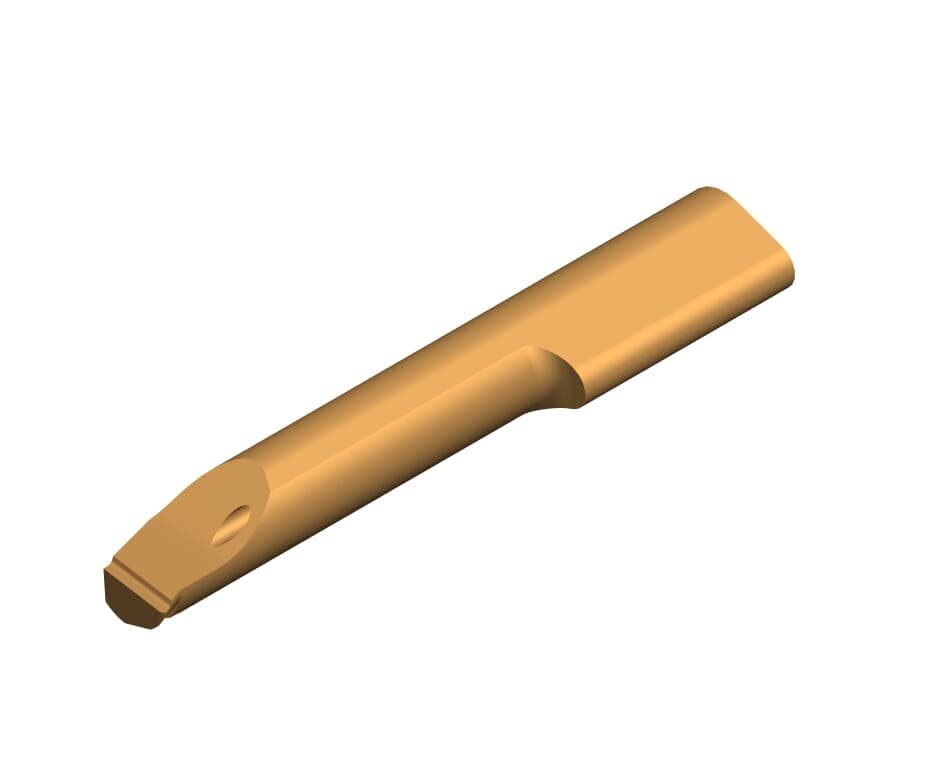

HORN R109.1838.6.HV7 TH35 · JR Tool

Inserts 109 for internal boring from diameter 6.0 mm with geometry .HV7

HORN R109.1838.6.HV7 TH35

Varenr.: HR10918386HV7TH35

HORN R109.1838.6.HV7 TH35

Tekniske billeder


Geometry HV

Tekniske specifikationer
Head size (a)	6.7
Maximum depth of groove (tmax)	0.4
Neck diameter (d)	6
Neck length (l2)	35
Smallest bore diameter (Da min)	7
Top radius (r)	0.2
Total length (l)	53
Total length (l5)	53

Tekniske filer

Henter tekniske filer …

Kategorier:Inserts 109 for internal boring from diameter 6.0 mm with geometry .HV7
