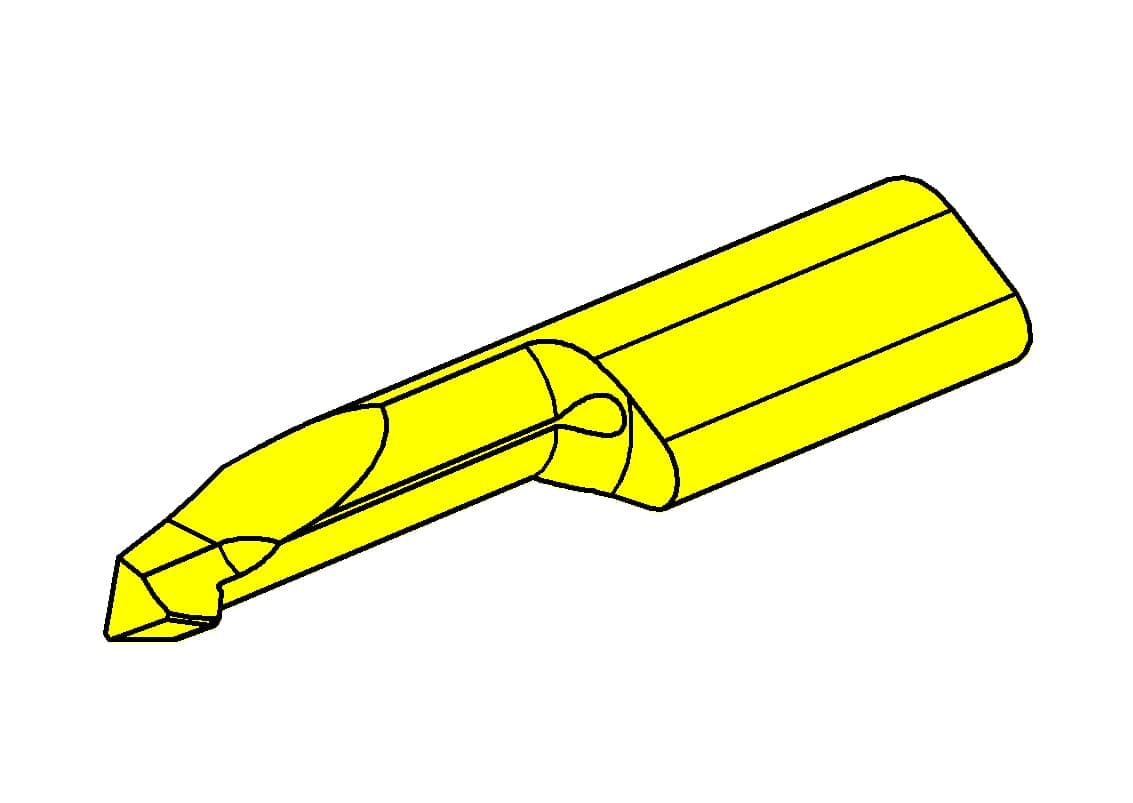

Inserts 109.4545 for chamfering and internal boring
1 / 2: HORN R109.4545.5.7 TH35
Internal chamfering
Internal grooving with chamfer
Internal profiling and chamfering
Internal coolingHenter tekniske filer …
Kategorier:Inserts 109.4545 for chamfering and internal boring
Henter matchende værktøj…
| Head size (a) | 6.7 |
|---|---|
| Maximum depth of groove (tmax) | 0.9 |
| Neck diameter (d) | 5.3 |
| Neck length (l2) | 30 |
| Smallest bore diameter (Da min) | 7 |
| Top radius (r) | 0.2 |
| Total length (l) | 48 |
| Total length (l5) | 48 |
