Inserts 111 for threading, full profile

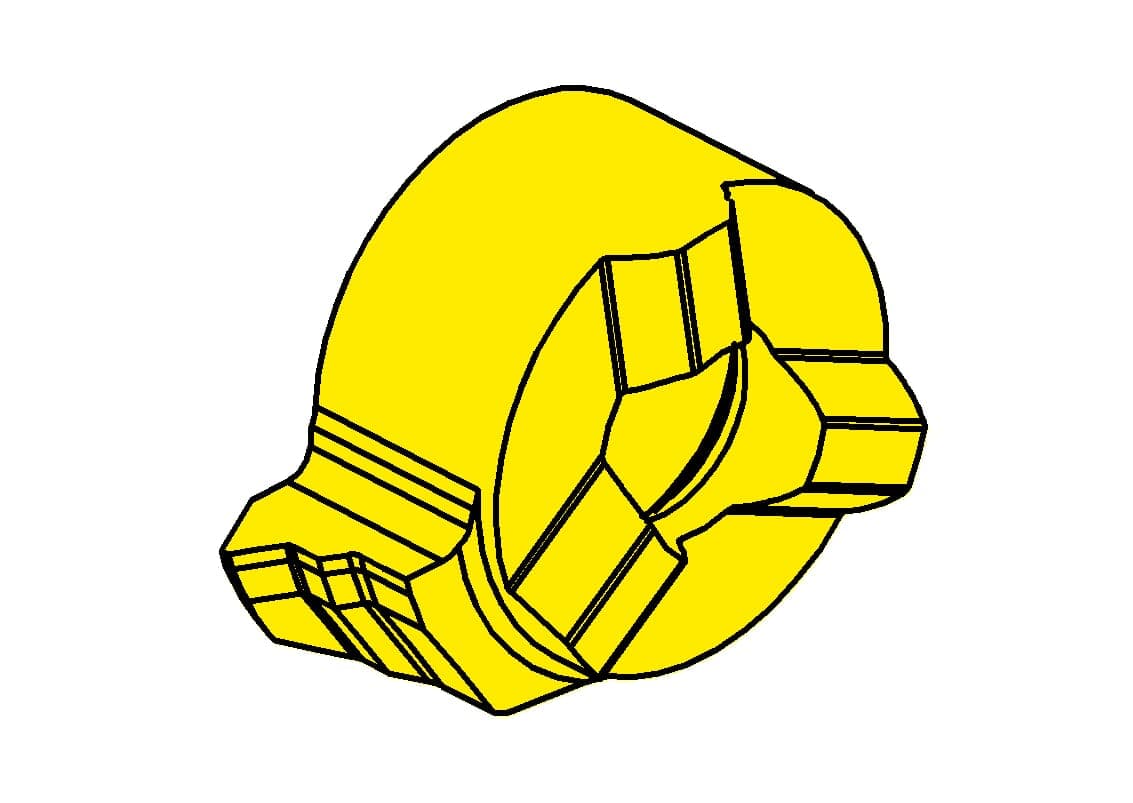

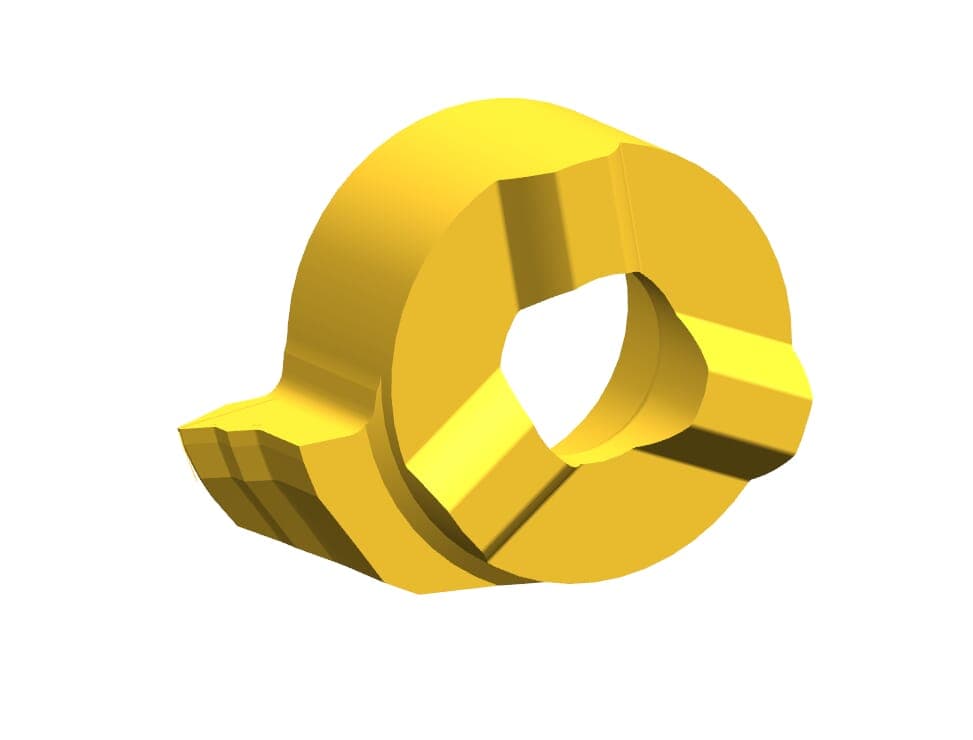

1 / 2: HORN R111.0510.02 TN35
60° thread| Cutting insert width (a) | 10.7 |
|---|---|
| Cutting insert height, Cutting insert thickness (s) | 4.15 |
| Number of teeth (Z) | 1 |
| Pitch (P) | 1 |
| Setting length (E) | 3.3 |
| Smallest bore diameter (Da min) | 11 |
| Tooth diameter, head diameter (d) | 8 |
Lagerstatus og købsmuligheder kontrolleres …
Henter tekniske filer …
Kategorier:Inserts 111 for threading, full profile
