Cutting inserts 111 Thread milling partial profile

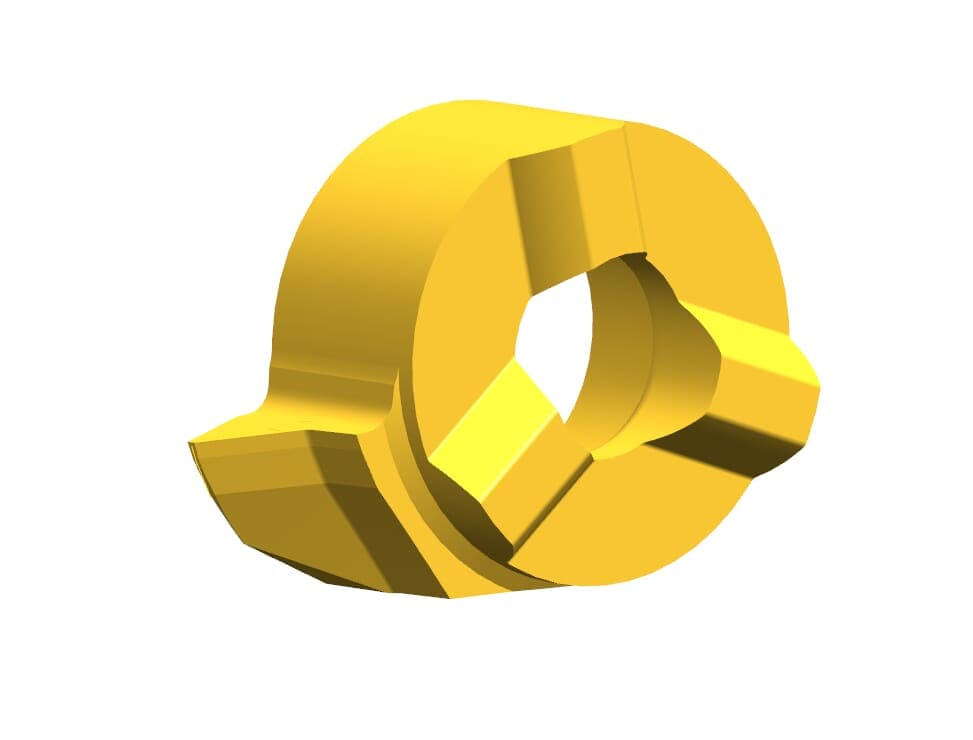

1 / 2: HORN R111.1020.01 TH35
60° thread| Cutting insert width (a) | 10.7 |
|---|---|
| Cutting diameter (Ds) | 13.4 |
| Cutting insert height, Cutting insert thickness (s) | 4.15 |
| Maximum pitch (Pmax) | 2 |
| Pitch (P) | 2 |
| Setting length (E) | 3 |
| Smallest bore diameter (Da min) | 11 |
| Tooth diameter, head diameter (d) |
Henter tekniske filer …
Kategorier:Cutting inserts 111 Thread milling partial profile
Henter matchende værktøj…
| 8 |
