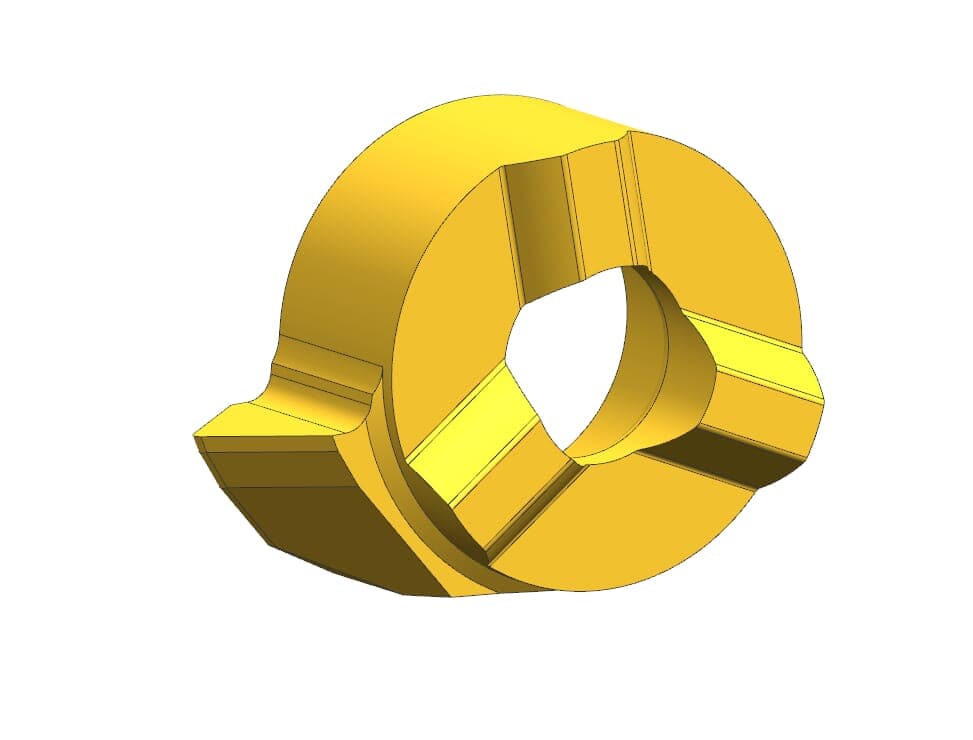

1 / 2: HORN R111.4545.02 TN35
Internal profiling and chamfering| Corner radius (r) | 0.2 |
|---|---|
| Cutting insert width (a) | 10.7 |
| Cutting diameter (Ds) | 13.4 |
| Cutting insert thickness to cutting edge, setting | 4.15 |
| Maximum milling depth (tmax) | 1.5 |
| Number of teeth (Z) | 1 |
| Setting length (E) | 2.4 |
Henter tekniske filer …
Kategorier:Inserts 111 - Back turning
Henter matchende værktøj…
| Smallest bore diameter (Da min) |
|---|
| 11 |
| Tooth diameter, head diameter (d) | 8 |
|---|
| number-of-teeth | 1 |
|---|
