Inserts 114 - Threading metric ISO thread, partial profile

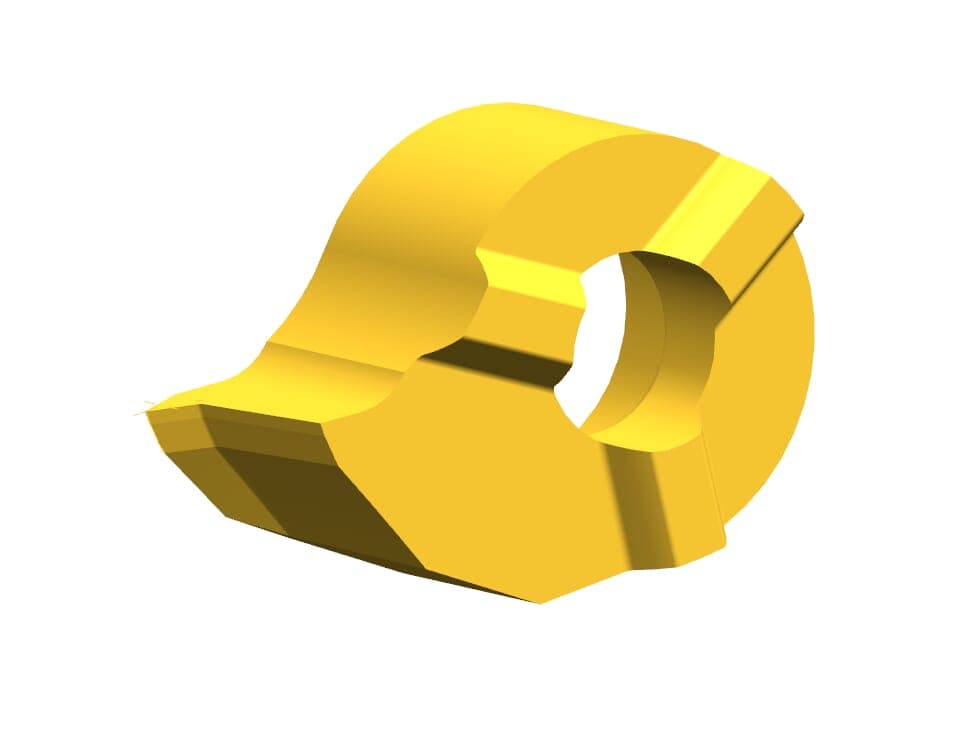

1 / 2: HORN R114.0205.01 TN35
60° thread| Cutting insert width (a) | 9 |
|---|---|
| Cutting insert height, Cutting insert thickness (s) | 5.5 |
| Maximum pitch (Pmax) | 0.75 |
| Number of teeth (Z) | 1 |
| Pitch (P) | 0.5 |
| Setting length (E) | 4.8 |
| Smallest bore diameter (Da min) | 14 |
| Tooth diameter, head diameter (d) |
Henter tekniske filer …
Kategorier:Inserts 114 - Threading metric ISO thread, partial profile
Henter matchende værktøj…
| 9 |
