Inserts 114 - Threading metric ISO thread, full profile

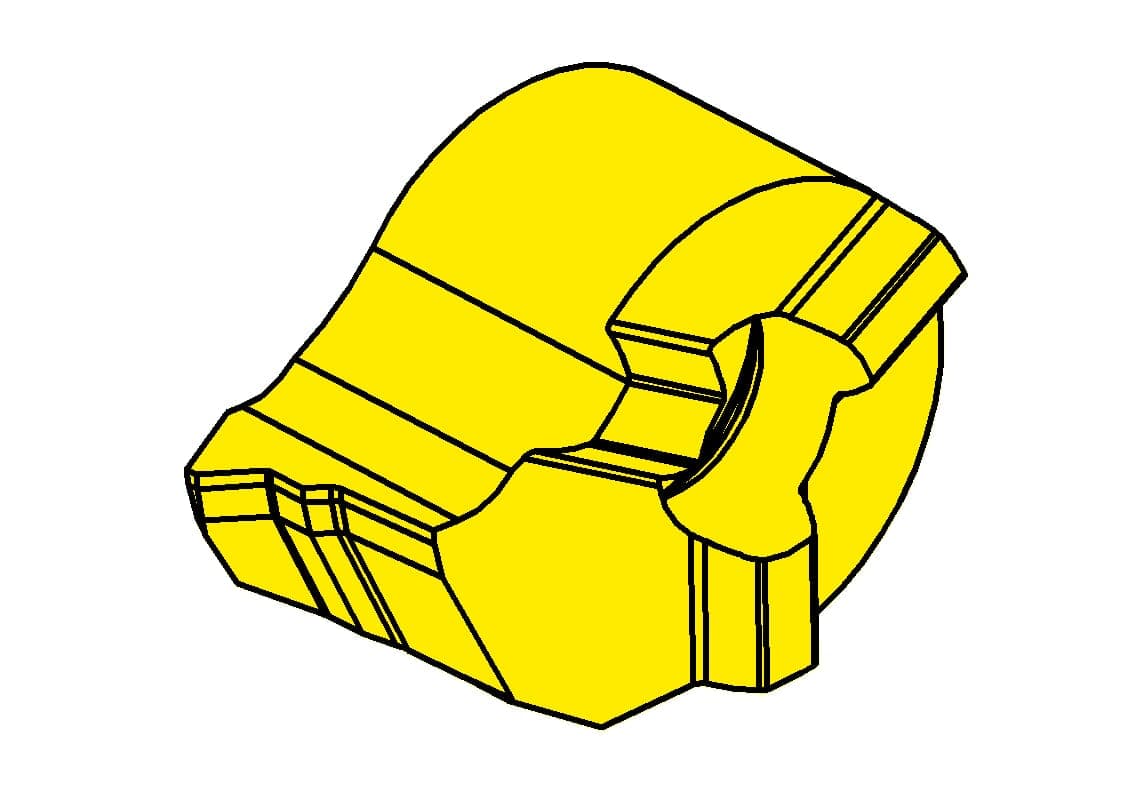

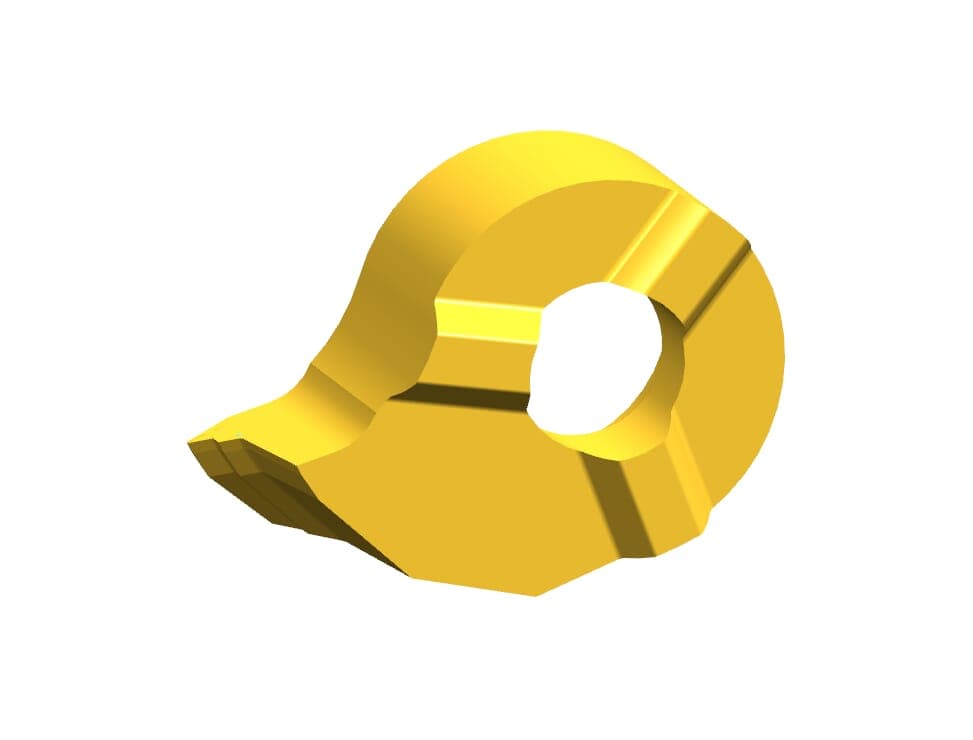

1 / 2: HORN R114.0815.02 TN35
60° thread| Cutting insert width (a) | 13.5 |
|---|---|
| Cutting insert height, Cutting insert thickness (s) | 5.5 |
| Number of teeth (Z) | 1 |
| Pitch (P) | 1.5 |
| Setting length (E) | 4.5 |
| Smallest bore diameter (Da min) | 14 |
| Tooth diameter, head diameter (d) | 9 |
Lagerstatus og købsmuligheder kontrolleres …
Henter tekniske filer …
Kategorier:Inserts 114 - Threading metric ISO thread, full profile
