Inserts 114 - Pre-grooving and chamfering

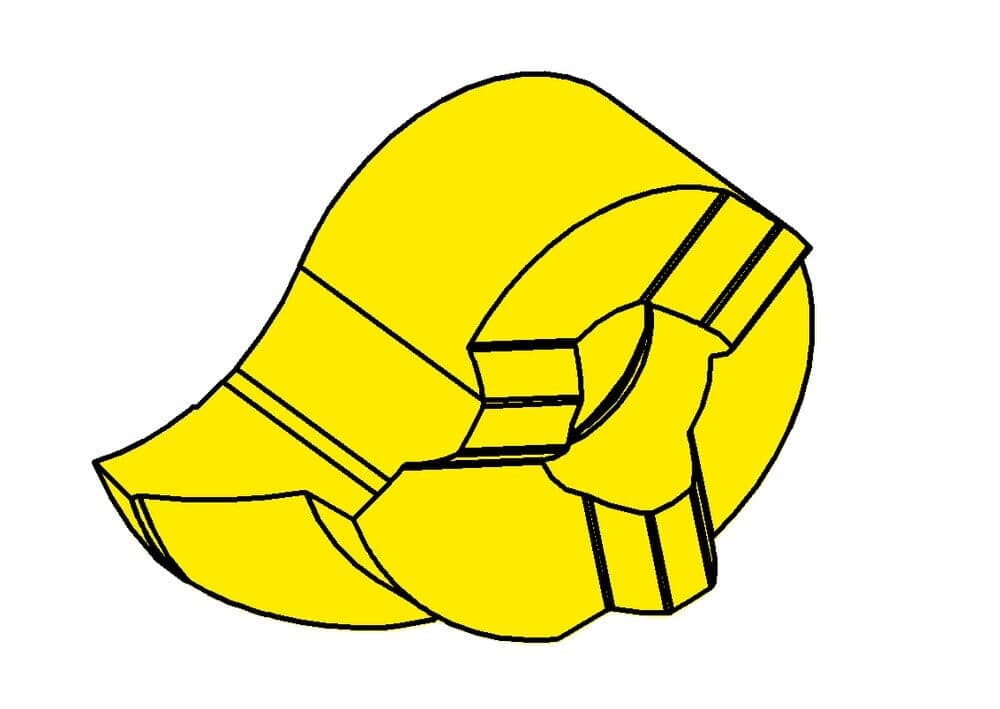

1 / 2: HORN R114.0815.45 TI25
Internal pre-part off and chamfering| Cutting insert height, Cutting insert thickness (s) | 5.3 |
|---|---|
| Groove depth without groove outer edge chamfer _t1 | 0.2 |
| Head size (a) | 13.5 |
| Maximum depth of groove (tmax) | 1.5 |
| Smallest bore diameter (Da min) | 14 |
| Tooth diameter, head diameter (d) | 9 |
| Width of groove (w) | 1.5 |
Henter tekniske filer …
Kategorier:Inserts 114 - Pre-grooving and chamfering
