| _application | /conversions/R114VR20H5P_PICTO_20210618_152347100.JPG |
|---|---|
| _icon | geometrie_h5.jpg; innen_bohrung_kontur_ausdrehen.jpg; innen_einstechen_vollradius.jpg; pkd.jpg |
| _download | /documents/R114VR20H5P.DXF; /documents/R114VR20H5P_20230113_214006152.STP |

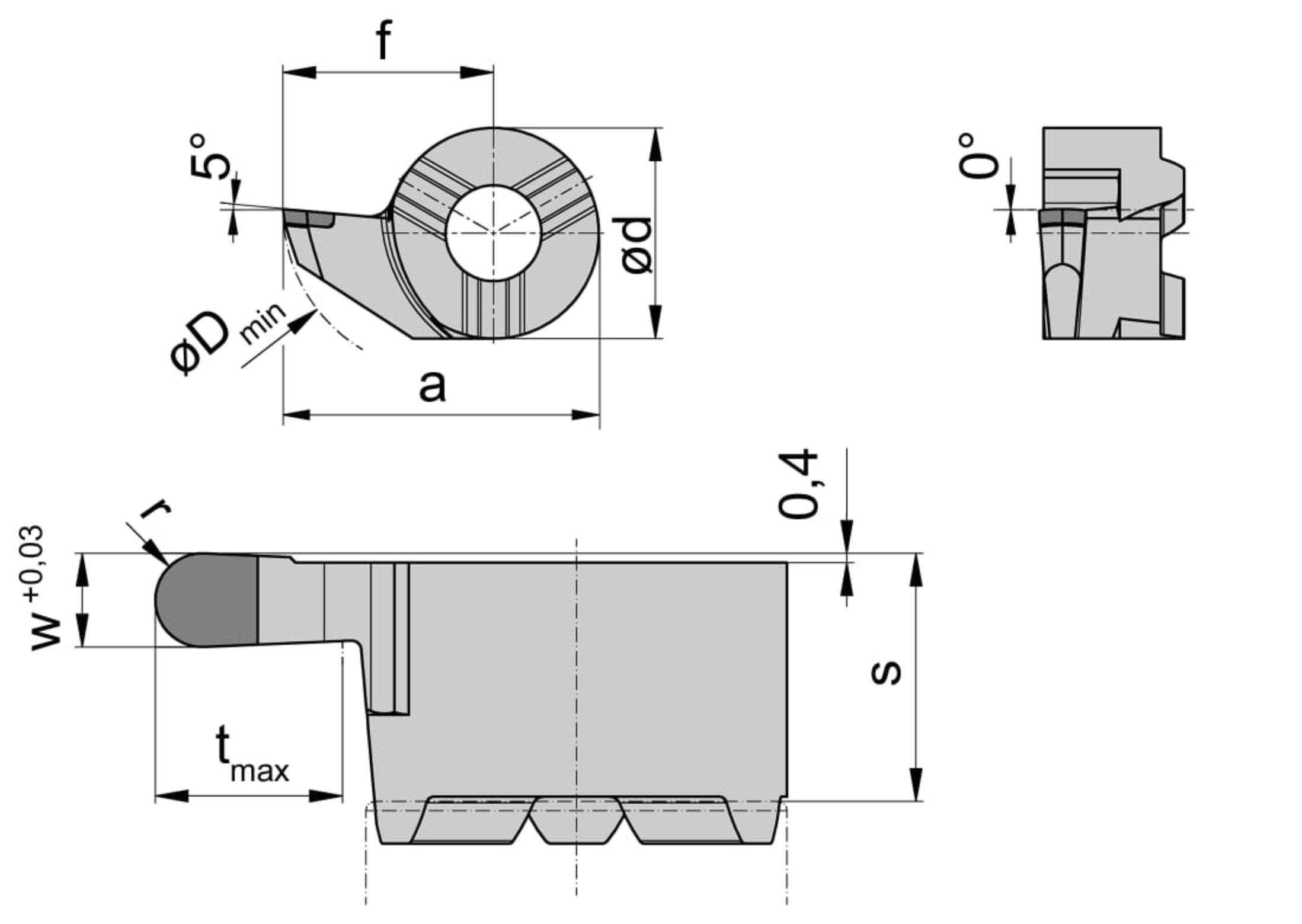

| _drawing | /conversions/114VR_H5.JPG |
| Cutting insert height, Cutting insert thickness (s) | 5.3 |
| eclass shortcut | 21-18-20-11 |
| Maximum depth of groove (tmax) | 4 |
| eclass | 21-18-20-11:Wechselplatte (ADR158005) |
| DIN_SSC | HORN-31109084R |
| Full radius (r) | 1 |
| ISO-SSC | HORN311090$84R$$$$$ |
| Katalog-SSC | 311090R |
| Head size (a) | 13.5 |
| productnr-sap | R114VR20H5PPD75 |
| Smallest bore diameter (Da min) | 14 |
| Width of groove (w) | 2 |
| Tooth diameter, head diameter (d) | 9 |
