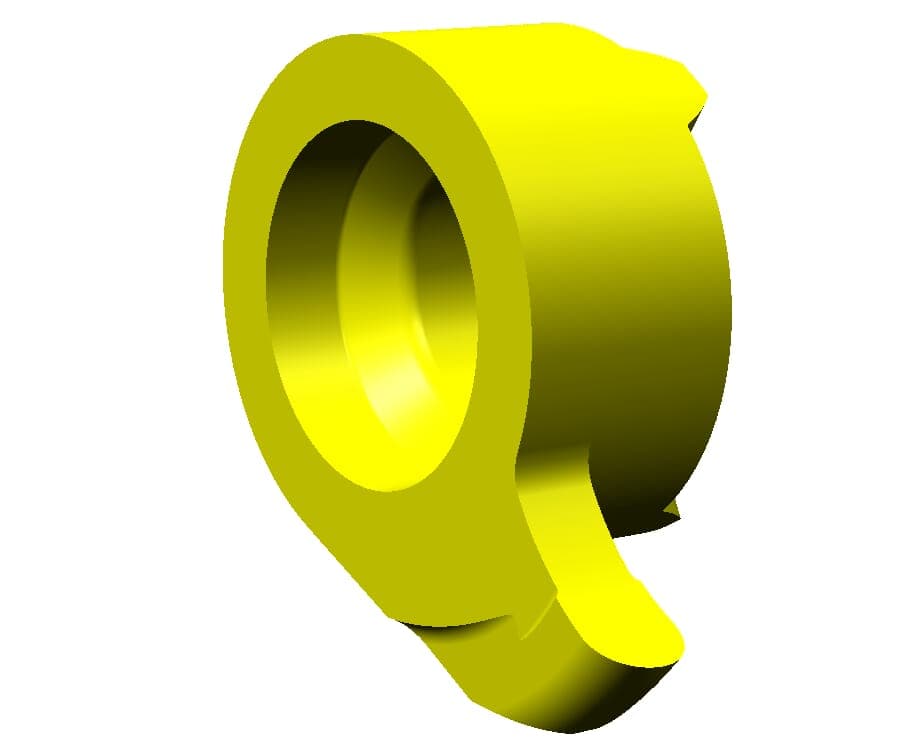

1 / 2: HORN R116.0011.22 TN35
Internal grooving - full radius| Cutting diameter (Ds) | 20.4 |
|---|---|
| Cutting insert height, Cutting insert thickness (s) | 5.3 |
| Head size (a) | 15.7 |
| Maximum depth of groove (tmax) | 4.3 |
| Radius, full-radius (r) | 1.1 |
| Smallest bore diameter (Da min) | 16 |
| Tooth diameter, head diameter (d) | 11 |
Henter tekniske filer …
Kategorier:Inserts 116 - Grooving
Henter matchende værktøj…
| Width of groove (w) | 2.2 |
|---|
| cutting insert height met | 5.3 |
|---|
| number-of-teeth | 1 |
|---|
