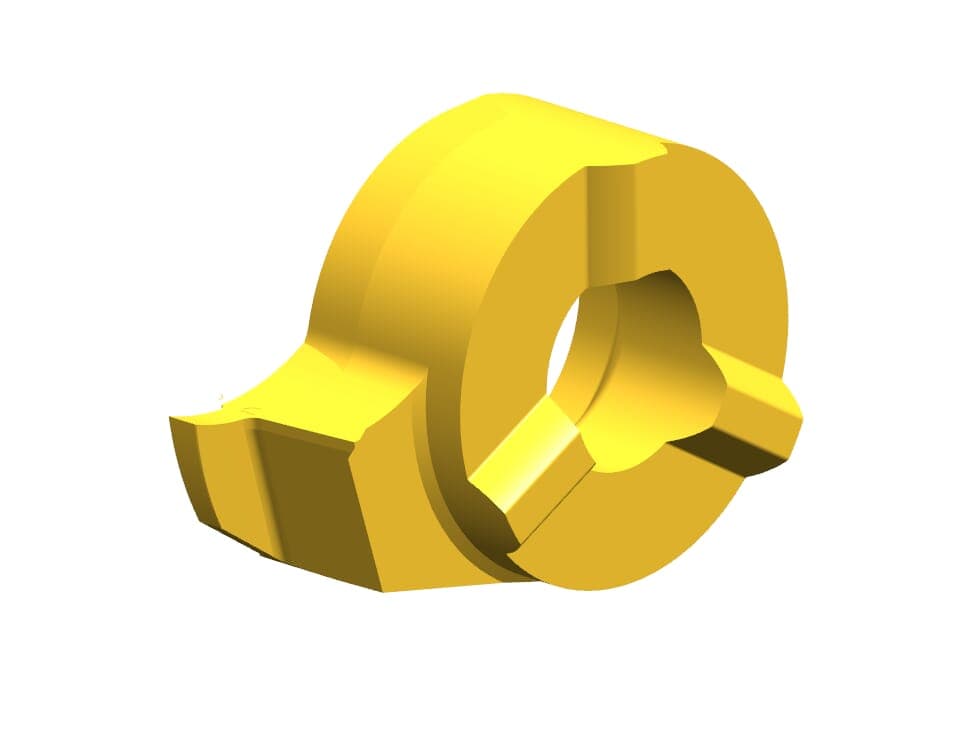

HORN R116.0080.00 TN35

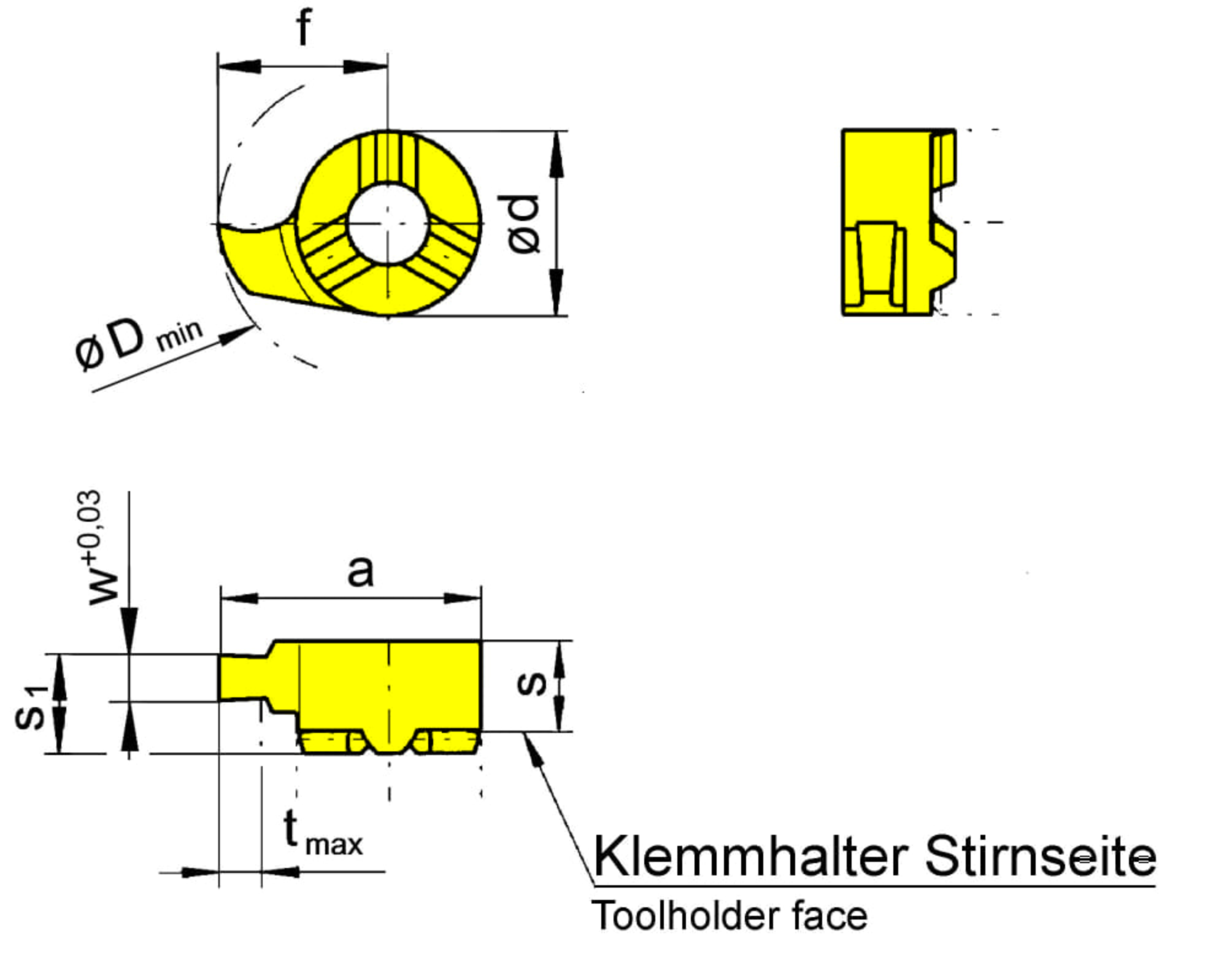

Tekniske billeder

Tekniske specifikationer
Cutting insert height, Cutting insert thickness (s)	5.5
Distance dimension cutting edge (s1)	5.3
Head size (a)	15.7
Maximum depth of groove (tmax)	1.3
Nominal range (Nw)	0.8
Smallest bore diameter (Da min)	16
Tooth diameter, head diameter (d)	11
