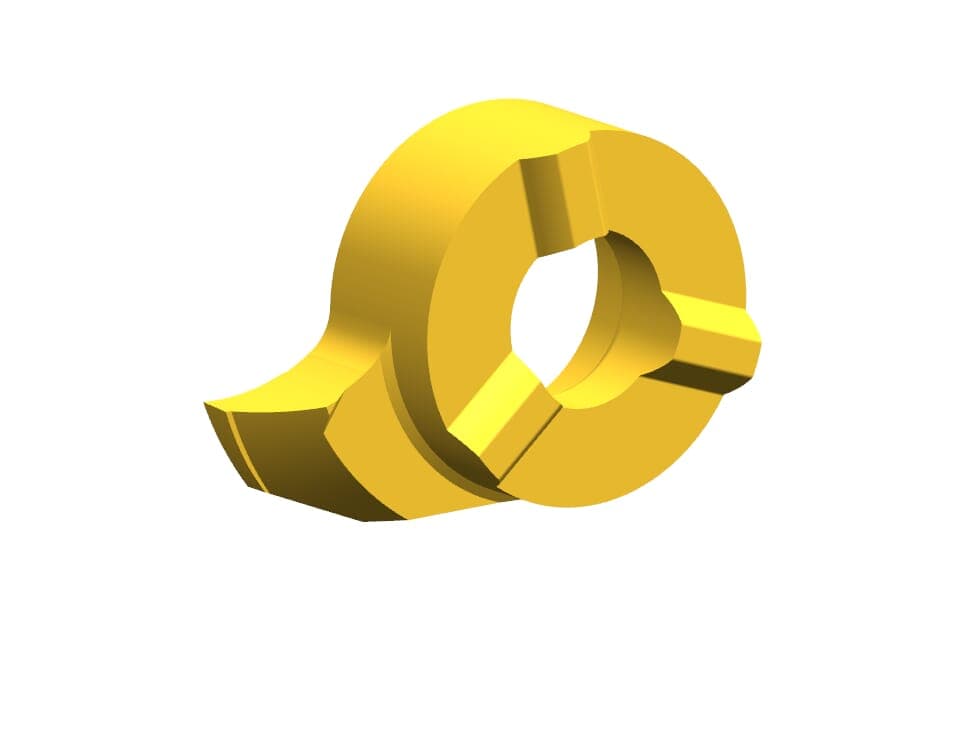

HORN R116.0815.45 TI25

Tekniske billeder

Tekniske specifikationer
Cutting insert height, Cutting insert thickness (s)	5.3
Groove depth without groove outer edge chamfer _t1	0.2
Head size (a)	15.7
Maximum depth of groove (tmax)	1.5
Smallest bore diameter (Da min)	16
Tooth diameter, head diameter (d)	11
Width of groove (w)	1.5
