Inserts 116 - Threading metric ISO trapezoidal thread DIN 103, partial profile

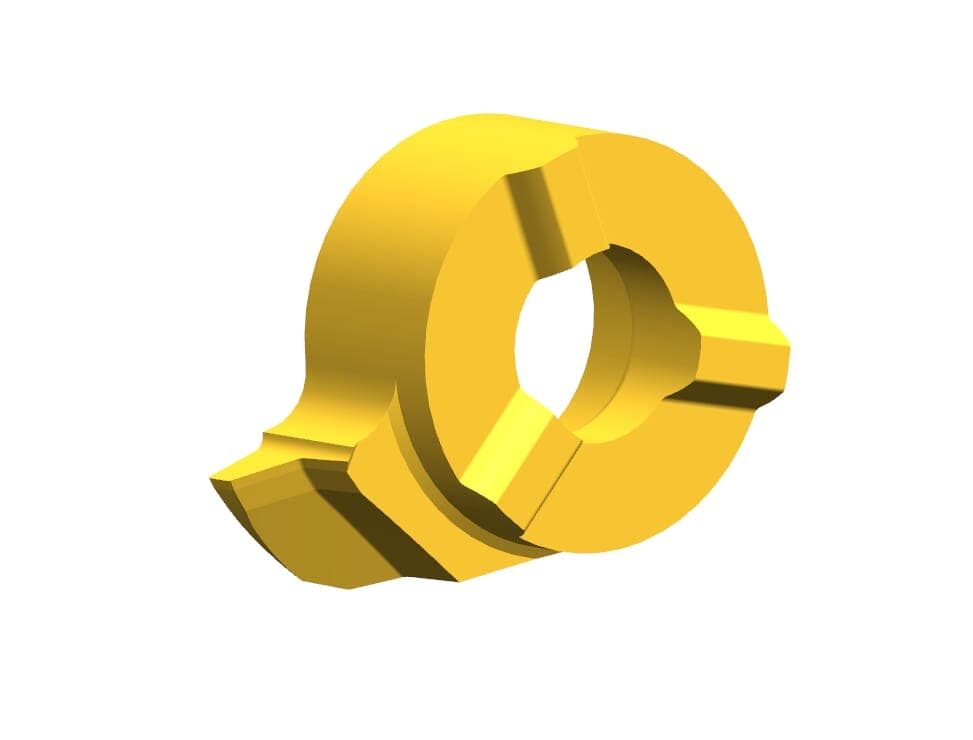

1 / 2: HORN R116.2240.01 TN35
Trapezoidal/Acme thread| Cutting insert width (a) | 15.2 |
|---|---|
| Cutting insert height, Cutting insert thickness (s) | 5.5 |
| Number of teeth (Z) | 1 |
| Pitch (P) | 4 |
| Setting length (E) | 4 |
| Smallest bore diameter (Da min) | 16 |
| Thread (Gewinde) | Tr 22x4 |
| Tooth diameter, head diameter (d) |
Henter tekniske filer …
Kategorier:Inserts 116 - Threading metric ISO trapezoidal thread DIN 103, partial profile
Henter matchende værktøj…
| 11 |
