Inserts 116 - Threading metric ISO trapezoidal thread DIN 103, partial profile

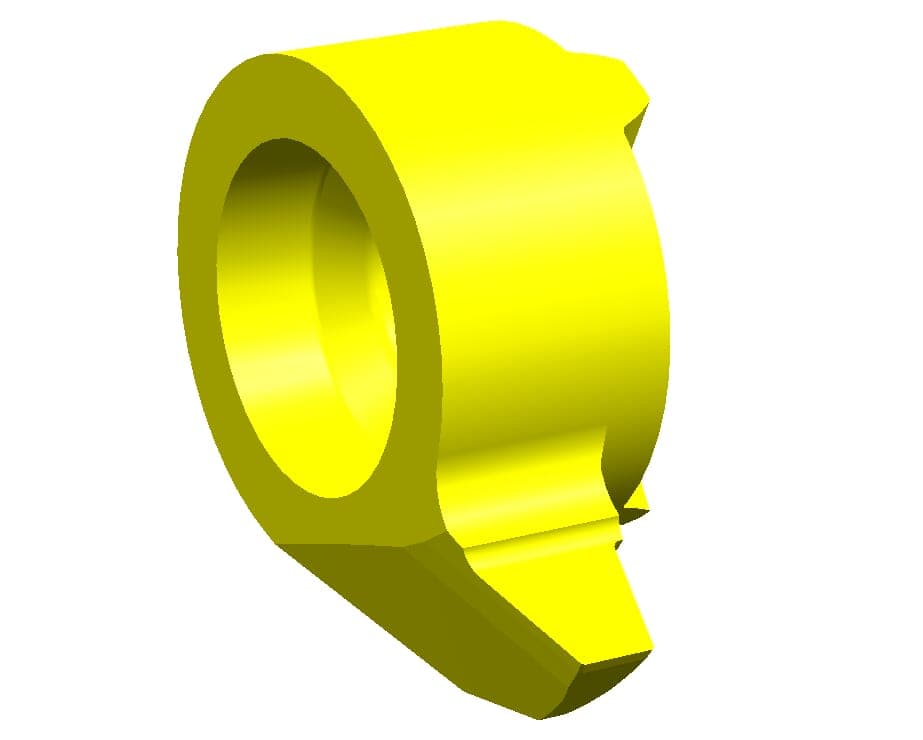

1 / 2: HORN R116.2750.01 TN35
Internal thread
Partial profile thread
Trapezoidal/Acme thread| Cutting insert width (a) | 15.7 |
|---|---|
| Cutting insert height, Cutting insert thickness (s) | 5.5 |
| Number of teeth (Z) |
Henter tekniske filer …
Kategorier:Inserts 116 - Threading metric ISO trapezoidal thread DIN 103, partial profile
Henter matchende værktøj…
| 1 |
| Pitch (P) | 5 |
|---|
| Setting length (E) | 3.55 |
|---|
| Smallest bore diameter (Da min) | 16 |
|---|
| Thread (Gewinde) | Tr 24x5 |
|---|
| Tooth diameter, head diameter (d) | 11 |
|---|
Lagerstatus og købsmuligheder kontrolleres …
