Inserts 116 - Threading whitworth pipe thread DIN ISO 228, full profile Bore Ø from 16 mm

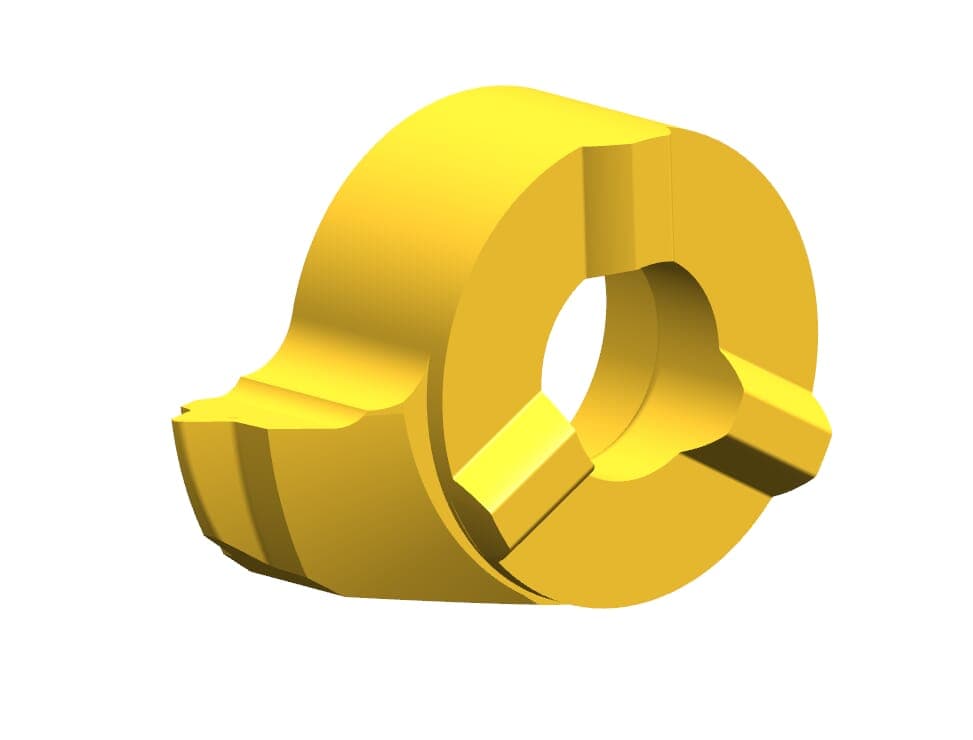

1 / 2: HORN R116.5514.02 TN35 NYT NUMMER
BSW/BSF thread| Cutting insert height, Cutting insert thickness (s) | 5.5 |
|---|---|
| Number of teeth (Z) | 1 |
| Setting length (E) | 3.9 |
| Smallest bore diameter (Da min) | 16 |
| Threads per inch (TPI) | 14 |
| Tooth diameter, head diameter (d) | 11 |
| cutting-insert-width-met | 15.7 |
Lagerstatus og købsmuligheder kontrolleres …
Henter tekniske filer …
Kategorier:Inserts 116 - Threading whitworth pipe thread DIN ISO 228, full profile Bore Ø from 16 mm
