System 210...K basic toolholder

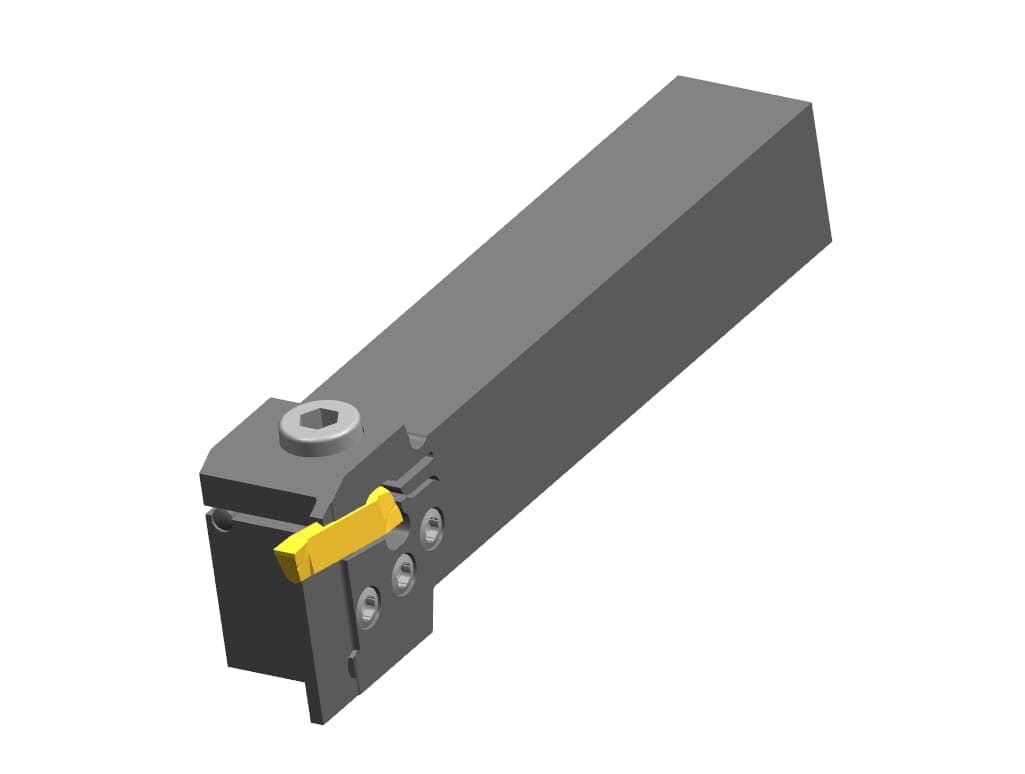

1 / 2: HORN R210.2525.K3
Grooving and side turning
Parting-off
External grooving| Clamping range maximum (Spannbereich) | 4 |
|---|---|
| Clamping range minimum (Spannbereich) | 3 |
Henter tekniske filer …
Kategorier:System 210...K basic toolholder
Henter matchende værktøj…

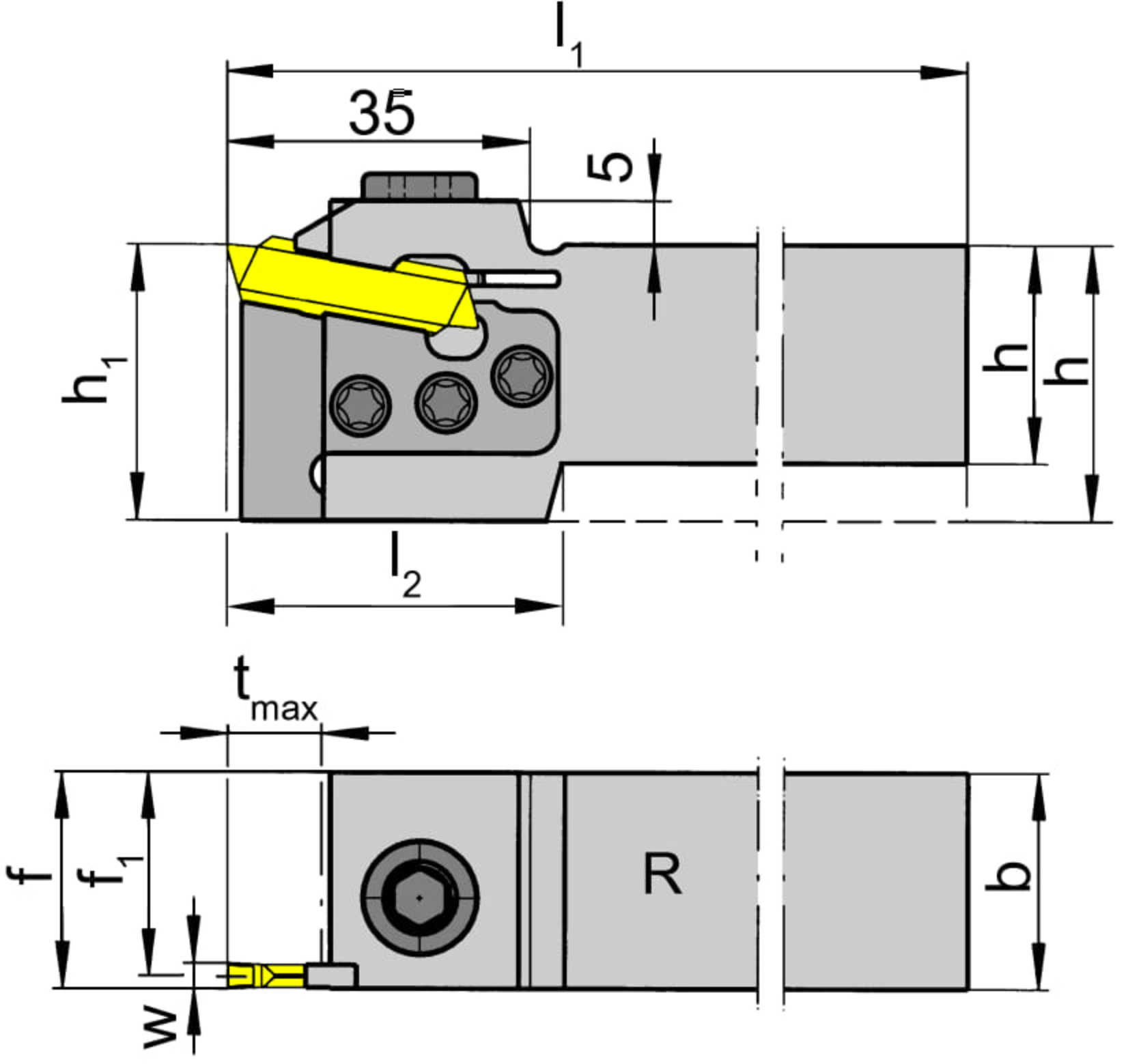

| Head length (including cutting edge) (l2) | 35 |
|---|
| Maximum insertion depth (tmax a) | 11 |
|---|
| Peak height (h1) | 32 |
|---|
| Shank height (h) | 25 |
|---|
| Shank width (b) | 25 |
|---|
| Size (Größe) | 3 |
|---|
| Total length (including cutting insert) (l1) | 150 |
|---|
| Total length (l) | 150 |
|---|
