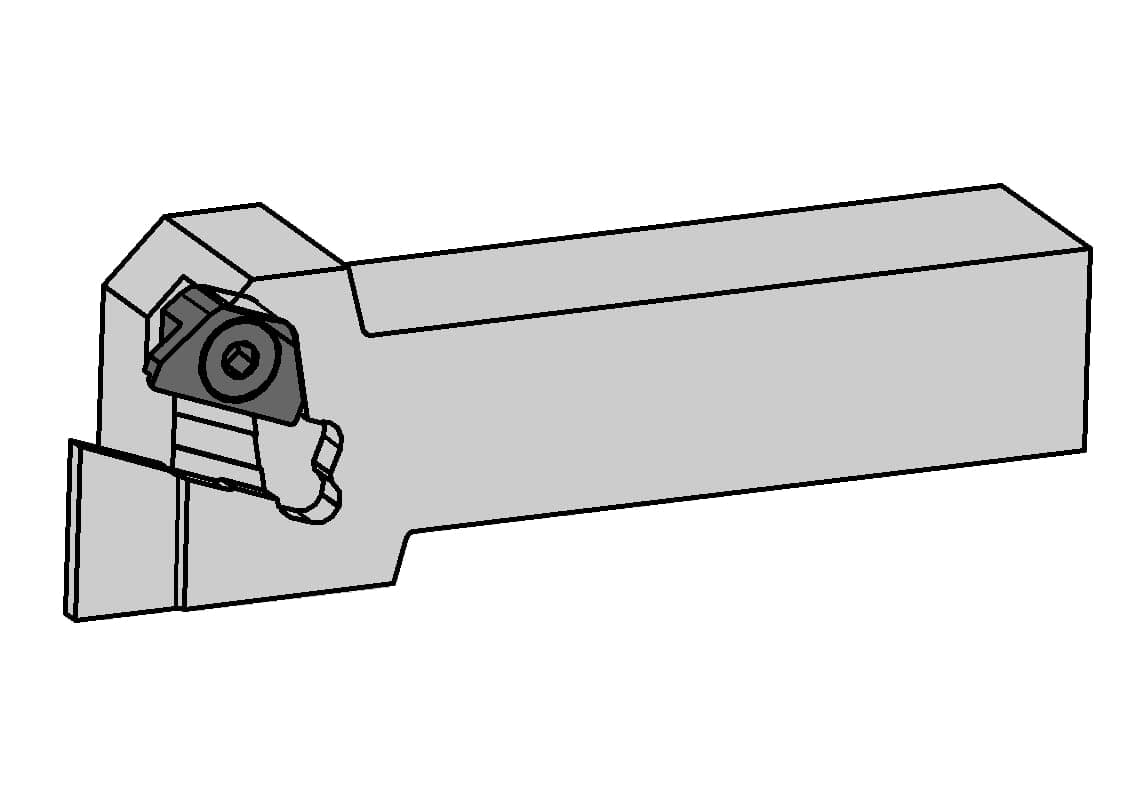

1 / 2: HORN R211.2020.05
Grooving and side turning
Parting-off

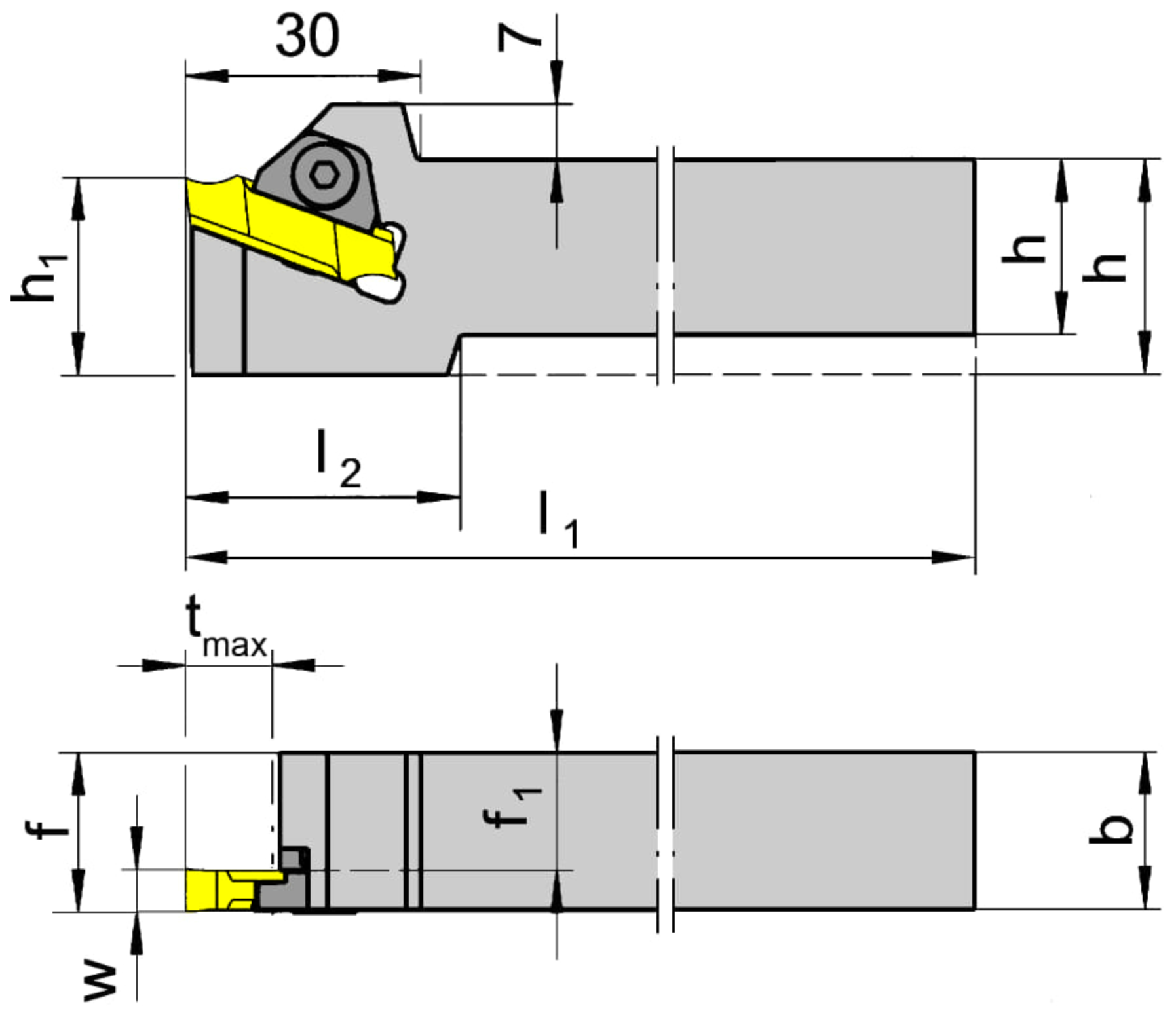

External grooving| Adjustment dimension locating face insert (f1) | 15 |
|---|---|
| Clamping range maximum (Spannbereich) | 6.5 |
Henter tekniske filer …
Kategorier:System 211
Henter matchende værktøj…
| Clamping range minimum (Spannbereich) | 5 |
|---|
| Head length (including cutting edge) (l2) | 35 |
|---|
| Maximum insertion depth (tmax a) | 11 |
|---|
| Peak height (h1) | 25 |
|---|
| Shank height (h) | 20 |
|---|
| Shank width (b) | 20 |
|---|
| Size (Größe) | 5 |
|---|
| Total length (including cutting insert) (l1) | 125 |
|---|
| Total length (l) | 125 |
|---|
