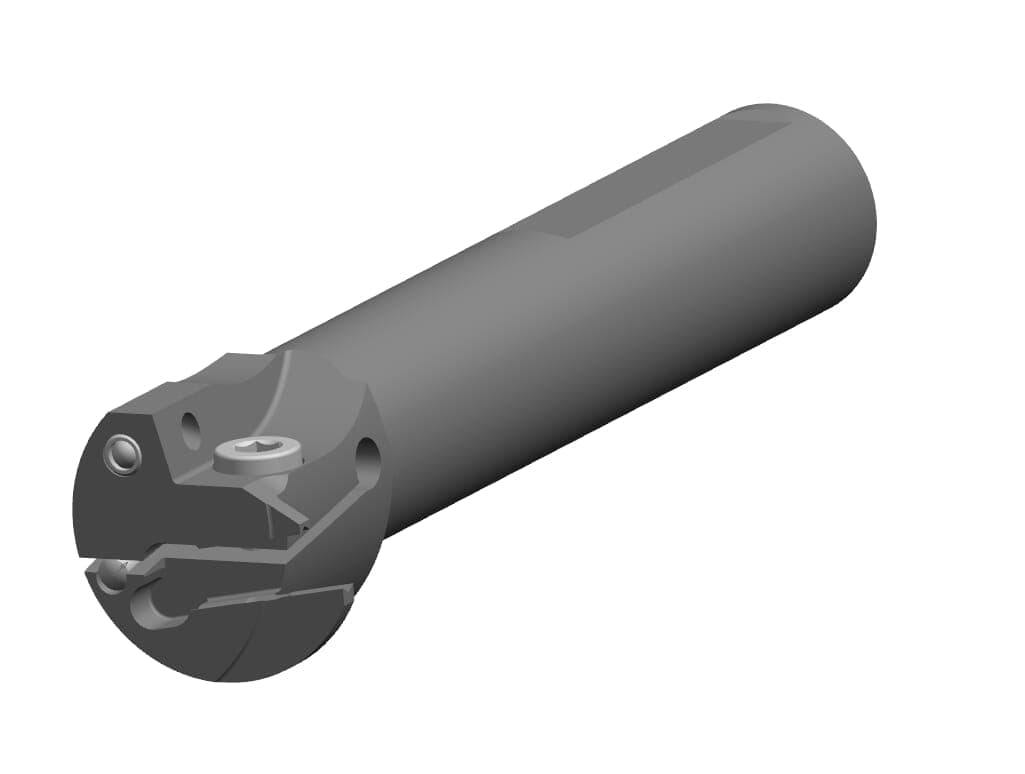

1 / 2: HORN R213.0025.03 IK
Internal bore contouring
Internal grooving
Targeted coolant| Clamping range maximum (Spannbereich) | 4 |
|---|---|
| Clamping range minimum (Spannbereich) | 3 |
Henter tekniske filer …
Kategorier:System 213IK with IC
Henter matchende værktøj…
| Clamping_ shank diameter (d) | 25 |
|---|
| Distance of clamping surface (s) (h) | 23 |
|---|
| Maximum depth of groove (tmax) | 7.5 |
|---|
| Minimum drilling diameter (Dmin) | 38 |
|---|
| Peak height (h1) | 11.5 |
|---|
| Plating seat size (Größe) | 3 |
|---|
| Shank, clamping diameter (d) | 25 |
|---|
| Total length (including cutting insert) (l1) | 150 |
|---|
| Total length (l) | 150 |
|---|
