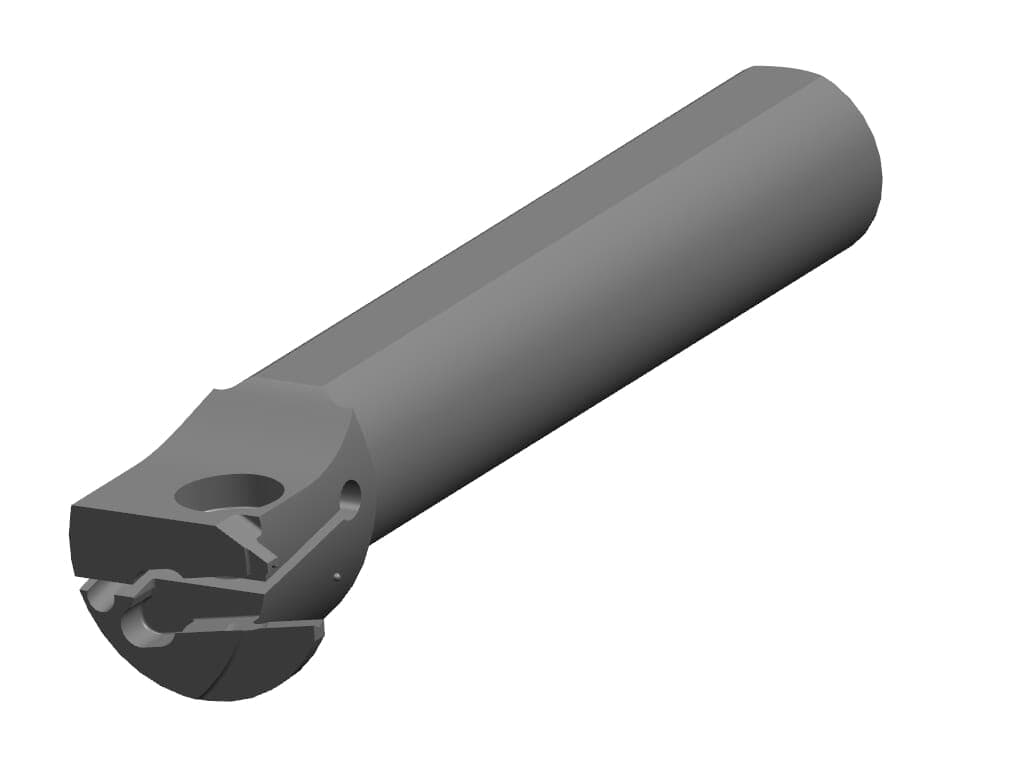

1 / 2: HORN R213.0040.04
Internal bore contouring
Internal grooving| Clamping range maximum (Spannbereich) | 5 |
|---|---|
| Clamping range minimum (Spannbereich) | 4 |
| Clamping_ shank diameter (d) | 40 |
| Distance of clamping surface (s) (h) | 38 |
| Maximum depth of groove (tmax) |
Henter tekniske filer …
Kategorier:System 213
Henter matchende værktøj…
| 11.5 |
| Minimum drilling diameter (Dmin) | 50 |
|---|
| Outcropping, neck, working length (l1) | 37.4 |
|---|
| Peak height (h1) | 19 |
|---|
| Plating seat size (Größe) | 4 |
|---|
| Shank, clamping diameter (d) | 40 |
|---|
| Total length (including cutting insert) (l1) | 180 |
|---|
| Total length (l) | 180 |
|---|
| Working length (l2) | 30 |
|---|
