1 / 2: HORN R226.2020.0.03 IK M/INDV. KØL
Grooving and side turning
Parting-off
External grooving
Targeted coolantHenter tekniske filer …
Kategorier:Toolholder System 226 with IC
Henter matchende værktøj…

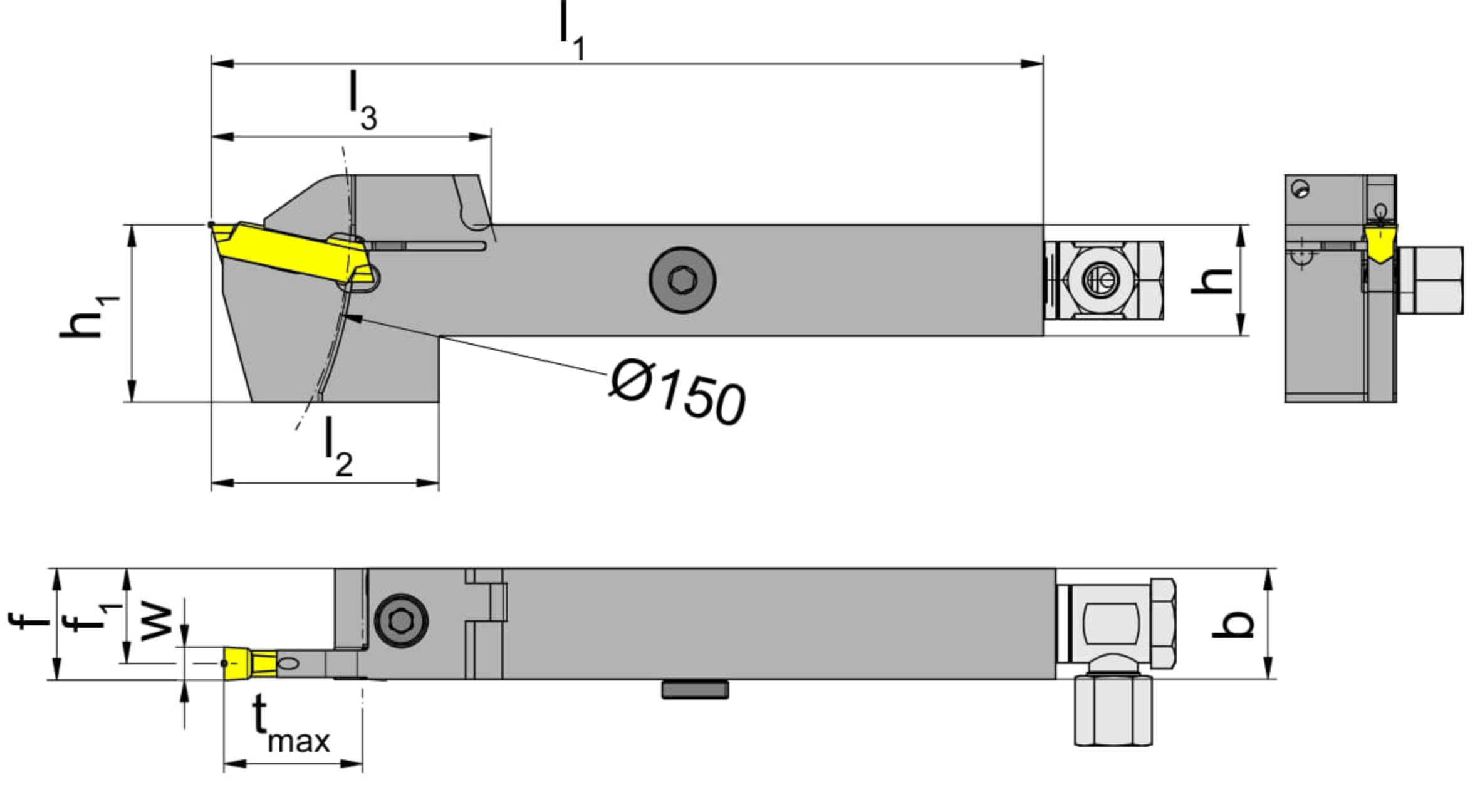

| Head length (including cutting edge) (l2) | 41 |
|---|---|
| Head length top _including cutting edge_ (l2) | 50.5 |
| Maximum insertion depth (tmax a) | 25 |
| Peak height (h1) | 32 |
| Plating seat size (Größe) | 3 |
| Shank height (h) | 20 |
| Shank width (b) | 20 |
| Total length (including cutting insert) (l1) | 150 |
| Total length (l) | 150 |
