Inserts S229 threading metric ISO thread, partial profile thread

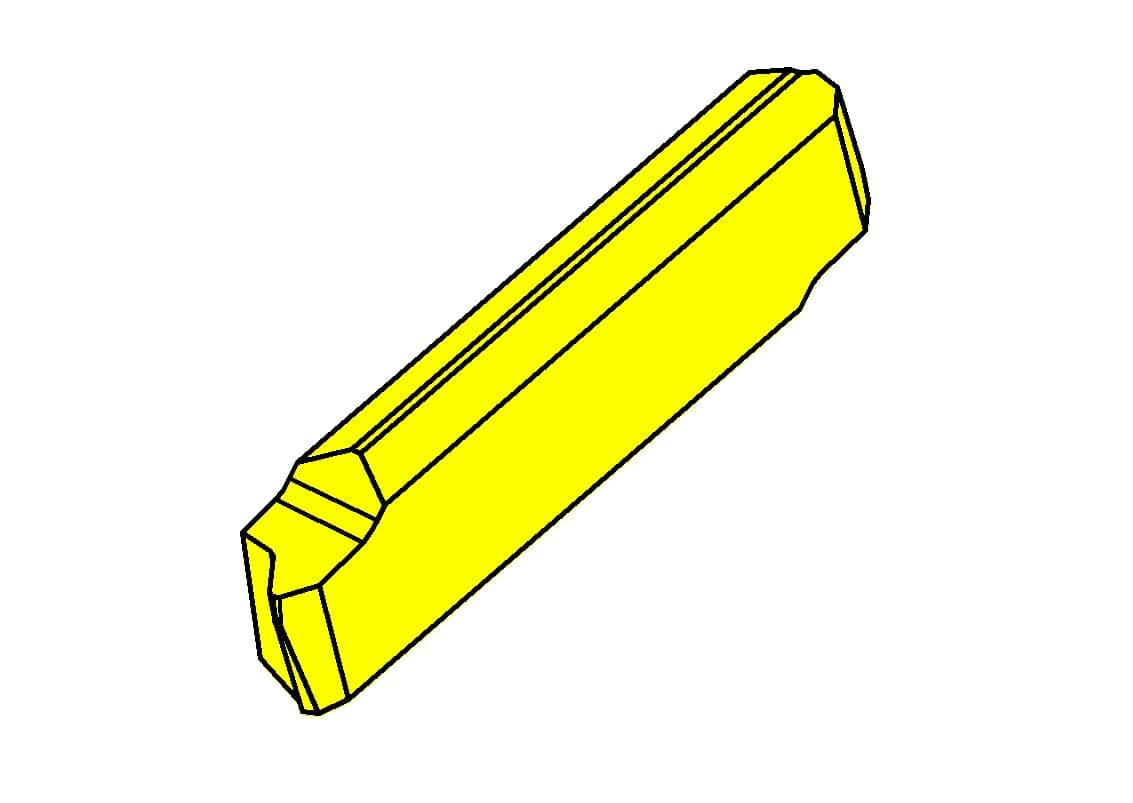

1 / 2: HORN R229.0610.01 TN35
60° thread
External thread
Partial profile thread| Pitch (P) | 1 |
|---|---|
| Plating seat size (Größe) | 3;4 |
| Profile, thread depth (t1) | 0.61 |
Henter tekniske filer …
Kategorier:Inserts S229 threading metric ISO thread, partial profile thread
Henter matchende værktøj…
| Setting length (E) | 0.8 |
|---|
| Top radius (r) | 0.12 |
|---|
