Inserts 315 for threading internal, full profile

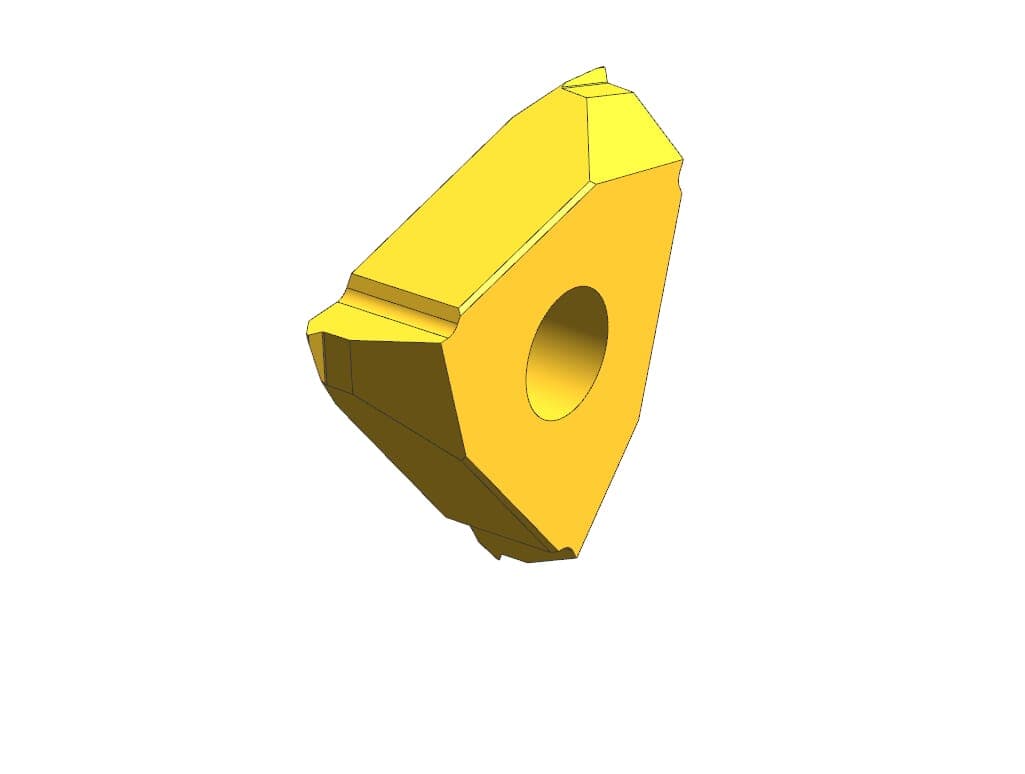

1 / 2: HORN R315.0815.02 TN35
60° thread
Full profile thread
Internal thread| Cutting insert height, Cutting insert thickness (s) | 5.45 |
|---|---|
| Number of teeth (Z) | 3 |
| Pitch (P) |
Henter tekniske filer …
Kategorier:Inserts 315 for threading internal, full profile
Henter matchende værktøj…
| 1.5 |
| Plating seat size (Größe) | 5 |
|---|
| Profile, thread depth (tmax) | 0.81 |
|---|
| Setting length (E) | 4.65 |
|---|
| Smallest bore diameter (Da min) | 40 |
|---|
| Width at the base of the thread (b) | 0.18 |
|---|
