Inserts 315 for threading, partial profile

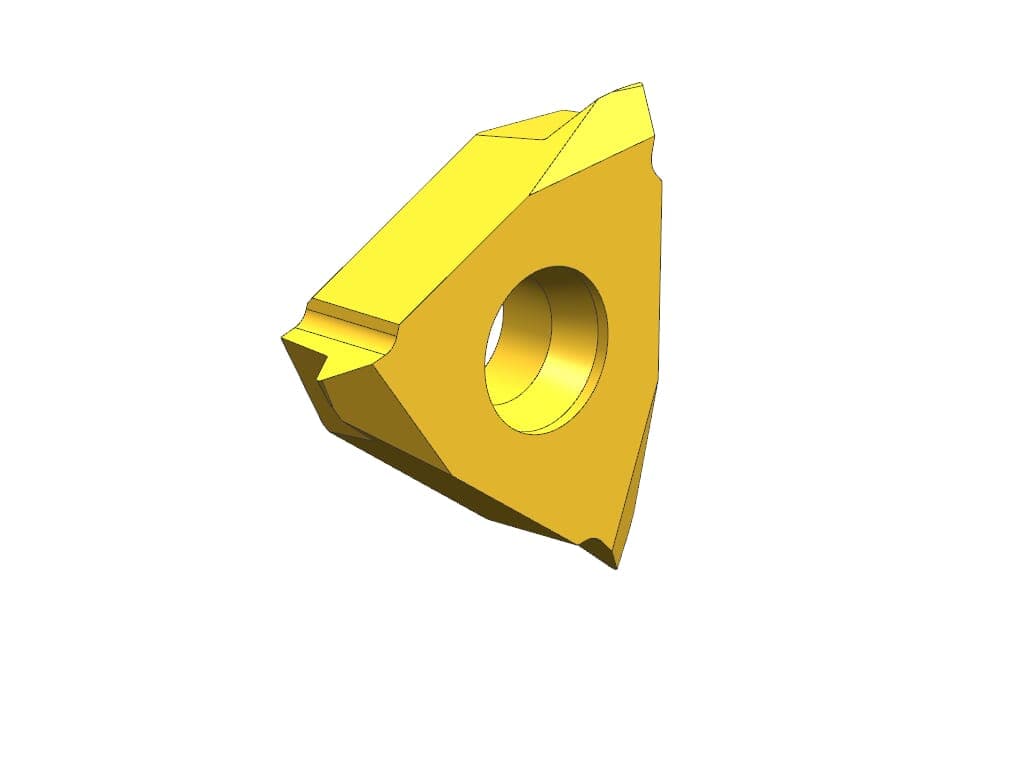

1 / 2: HORN R315.3060.01 TN35
60° thread
External thread

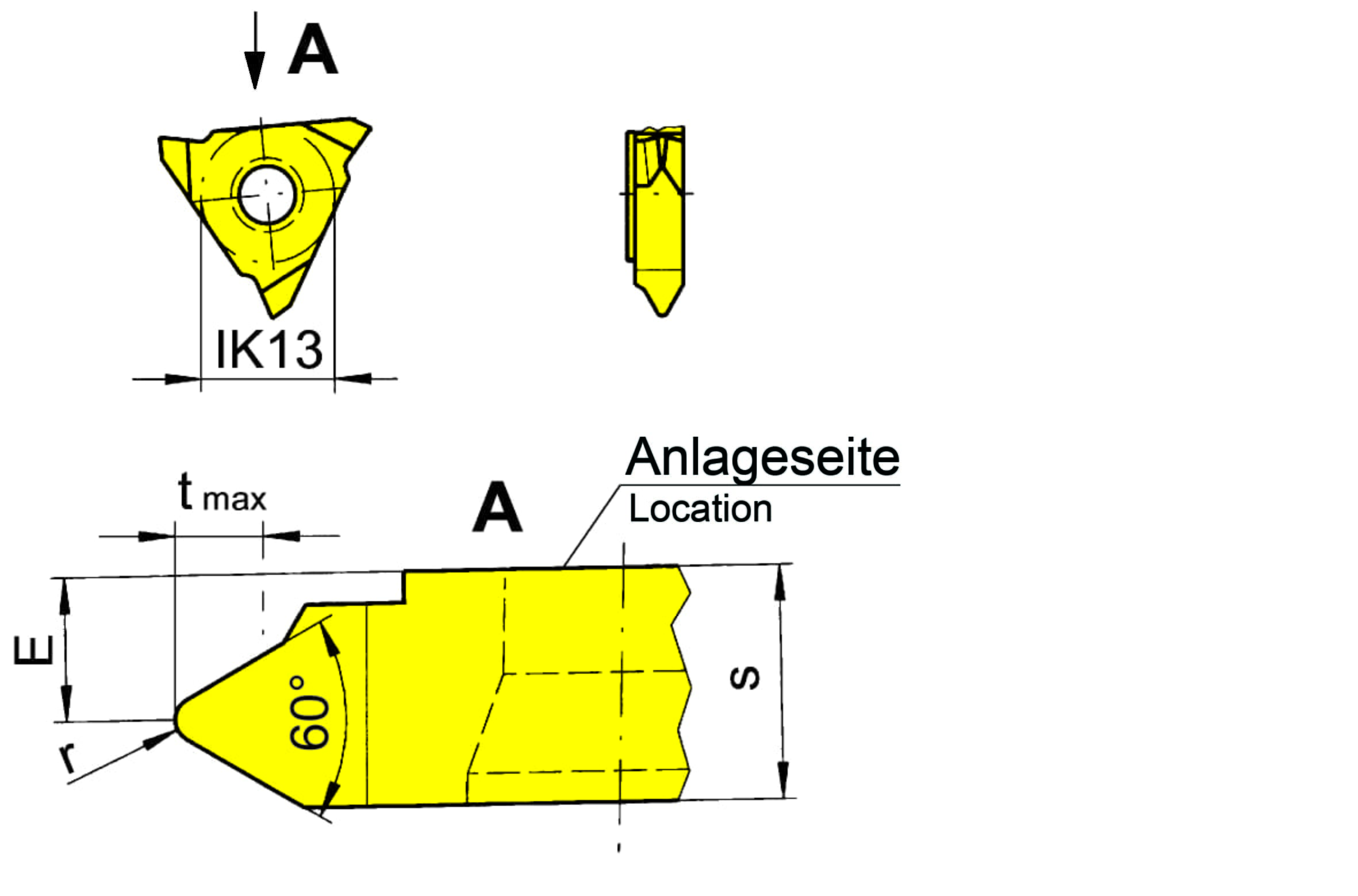

Partial profile thread| Cutting insert height, Cutting insert thickness (s) | 6.1 |
|---|---|
| Maximum pitch (Pmax) | 6 |
| Pitch (P) |
Henter tekniske filer …
Kategorier:Inserts 315 for threading, partial profile
Henter matchende værktøj…
| 3 |
| Plating seat size (Größe) | 5 |
|---|
| Profile, thread depth (tmax) | 4.15 |
|---|
| Setting length (E) | 3 |
|---|
| Top radius (r) | 0.4 |
|---|
