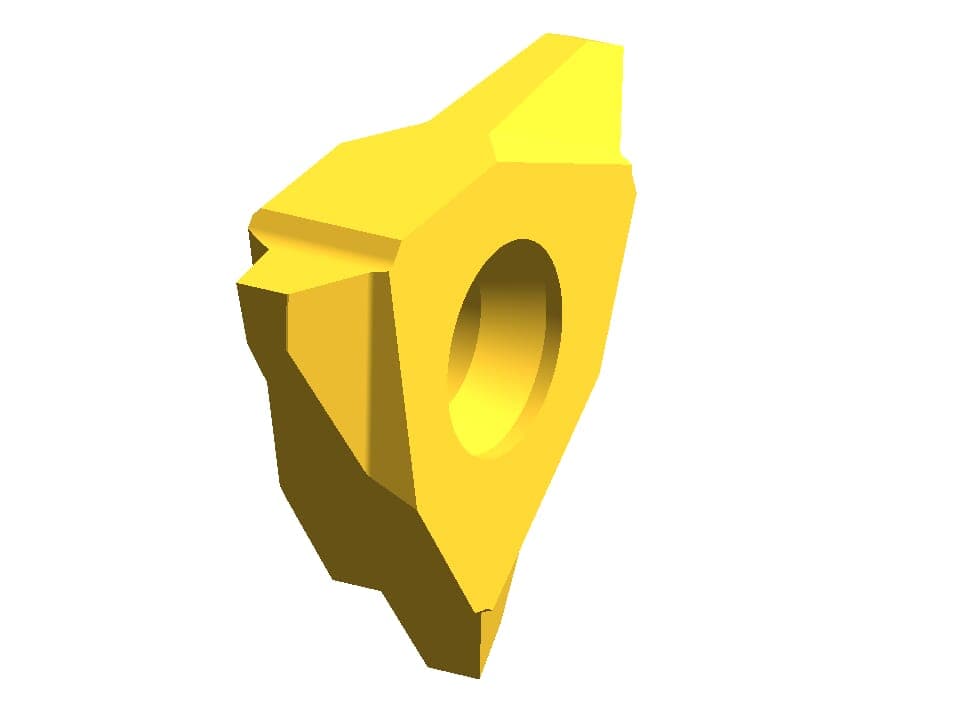

Inserts 315 for threading, trapezoidal thread DIN 103, full profile
1 / 2: HORN R315.3560.02 TN35
External thread
Full profile thread
Internal thread
Trapezoidal/Acme threadHenter tekniske filer …
Kategorier:Inserts 315 for threading, trapezoidal thread DIN 103, full profile
Henter matchende værktøj…
| Cutting insert height, Cutting insert thickness (s) |
|---|
| 5.45 |
| Number of teeth (Z) | 3 |
|---|
| Pitch (P) | 6 |
|---|
| Plating seat size (Größe) | 5 |
|---|
| Profile, thread depth (t1) | 3.5 |
|---|
| Setting length (E) | 3 |
|---|
| Smallest bore diameter (Da min) | 43 |
|---|
| Width at the base of the thread (b) | 1.93 |
|---|
