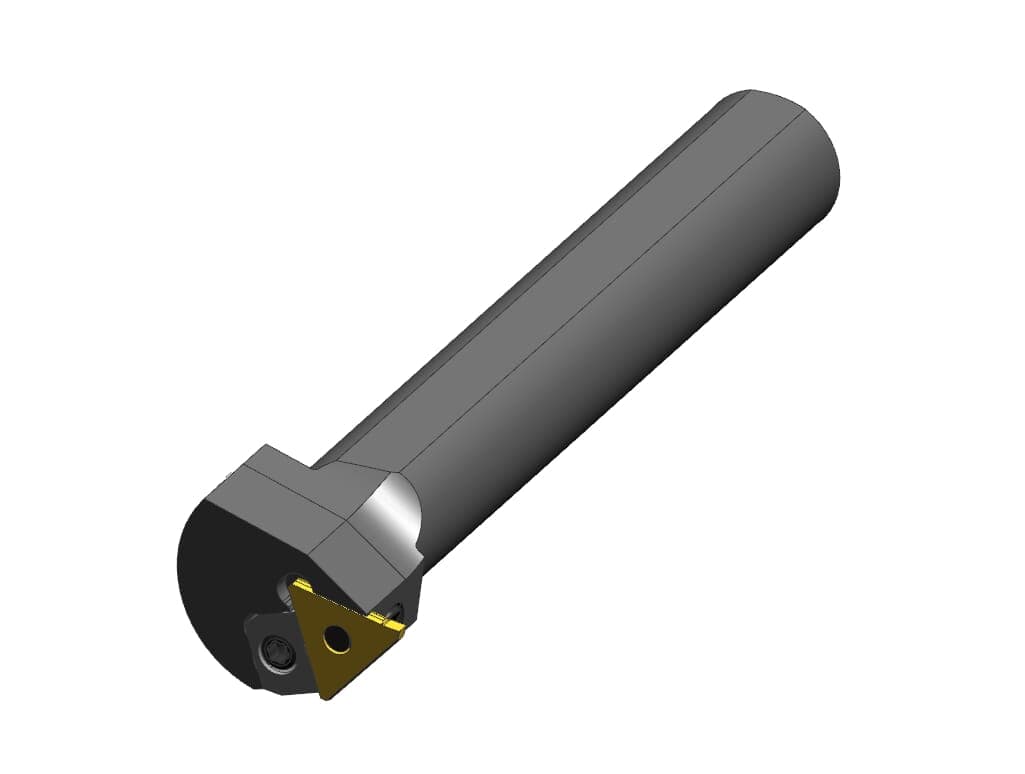

1 / 2: HORN R330.0025.K3
Internal bore contouring
Internal grooving| Clamping range maximum (Spannbereich) | 3.9 |
|---|---|
| Clamping range minimum (Spannbereich) | 2.9 |
| Clamping_ shank diameter (d) | 25 |
| Distance of clamping surface (s) (h) | 23 |
| Insert width (s1) |
Henter tekniske filer …
Kategorier:System 330
Henter matchende værktøj…
| 3.5 |
| Minimum drilling diameter (Dmin) | 46 |
|---|
| Peak height (h1) | 11.5 |
|---|
| Plating seat size (Größe) | 3 |
|---|
| Shank width (b) | 25 |
|---|
| Shank, clamping diameter (d) | 25 |
|---|
| Total length (including cutting insert) (l1) | 170 |
|---|
| Total length (l) | 170 |
|---|
| Working length (l2) | 20 |
|---|
