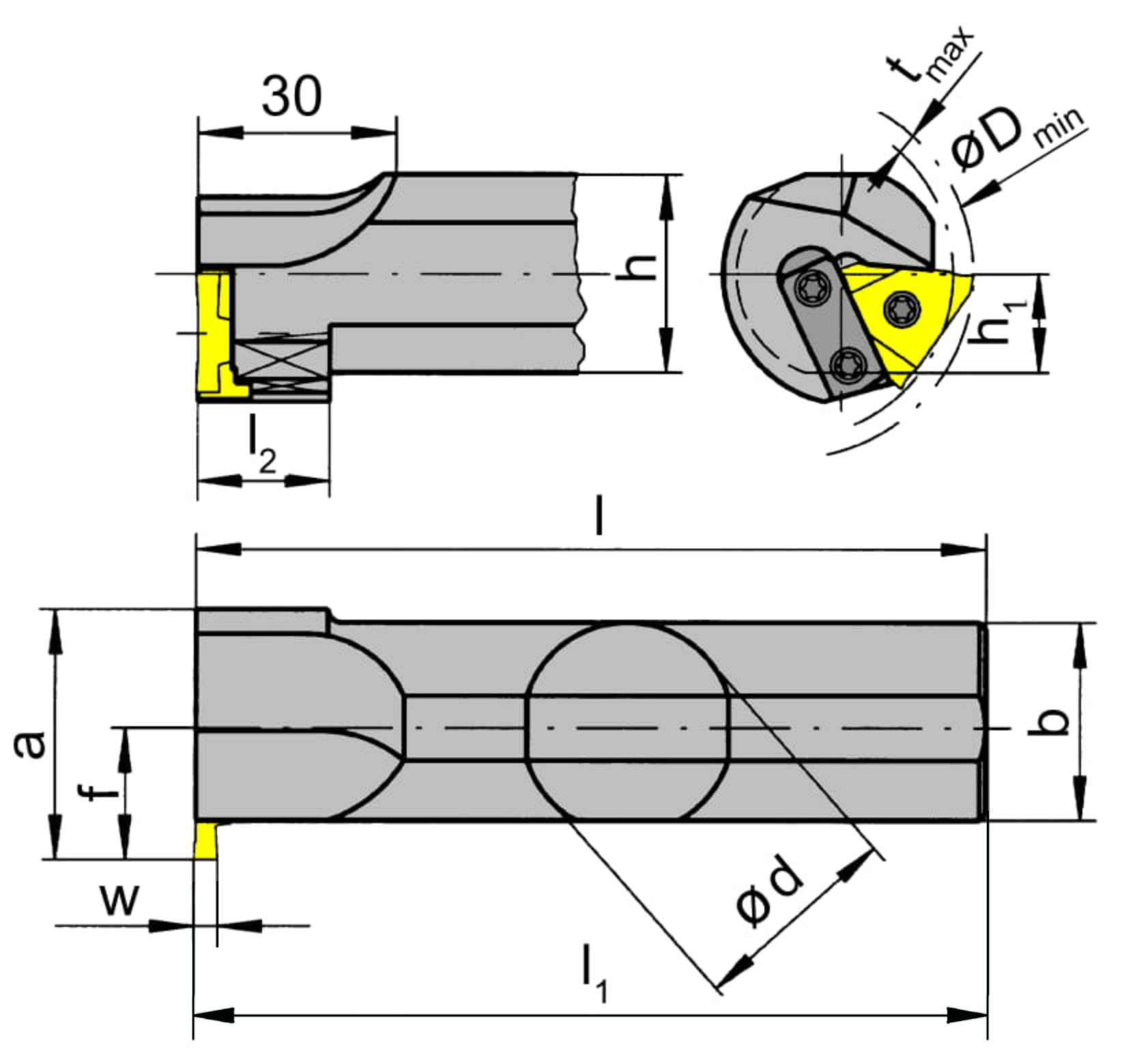

1 / 2: HORN R333.0025.05
Internal bore contouring
Internal grooving| Clamping_ shank diameter (d) | 25 |
|---|---|
| Distance of clamping surface (s) (h) | 23 |
| Head size (a) | 38 |
| Minimum drilling diameter (Dmin) | 43 |
| Peak height (h1) | 11.5 |
Henter tekniske filer …
Kategorier:System 333
Henter matchende værktøj…
| Plating seat size (Größe) | 5 |
|---|
| Shank width (b) | 25 |
|---|
| Shank, clamping diameter (d) | 25 |
|---|
| Total length (including cutting insert) (l1) | 170.3 |
|---|
| Total length (l) | 170.3 |
|---|
| Working length (l2) | 20 |
|---|
