Grooving and side turning
Parting-off
External grooving
Targeted coolantHenter tekniske filer …

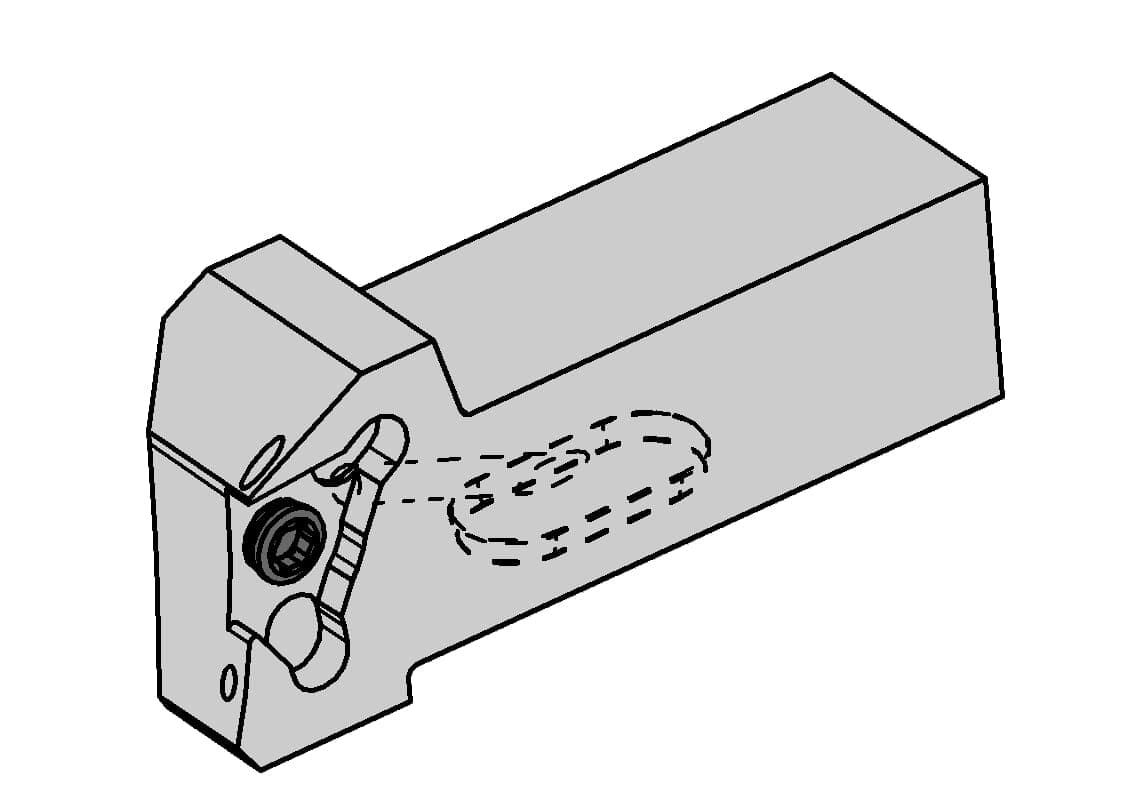

Kategorier:Toolholder System 356 with IC
Henter matchende værktøj…
| Adjustment dimension locating face insert (f1) | 17.2 |
|---|---|
| Head length (including cutting edge) (l2) | 20 |
| Maximum depth of groove (tmax) | 6 |
| Peak height (h1) | 23 |
| Plating seat size (Größe) | 3 |
| Shank height (h) | 20 |
| Shank width (b) | 20 |
| Total length (including cutting insert) (l1) | 87 |
| Total length (l) | 87 |
