Toolholder System B216 with IC
Internal bore contouring
Internal grooving
Targeted coolant| Clamping range maximum (Spannbereich) | 2.8 |
|---|---|
| Clamping range minimum (Spannbereich) | 2.4 |
Henter tekniske filer …
Kategorier:Toolholder System B216 with IC
Henter matchende værktøj…

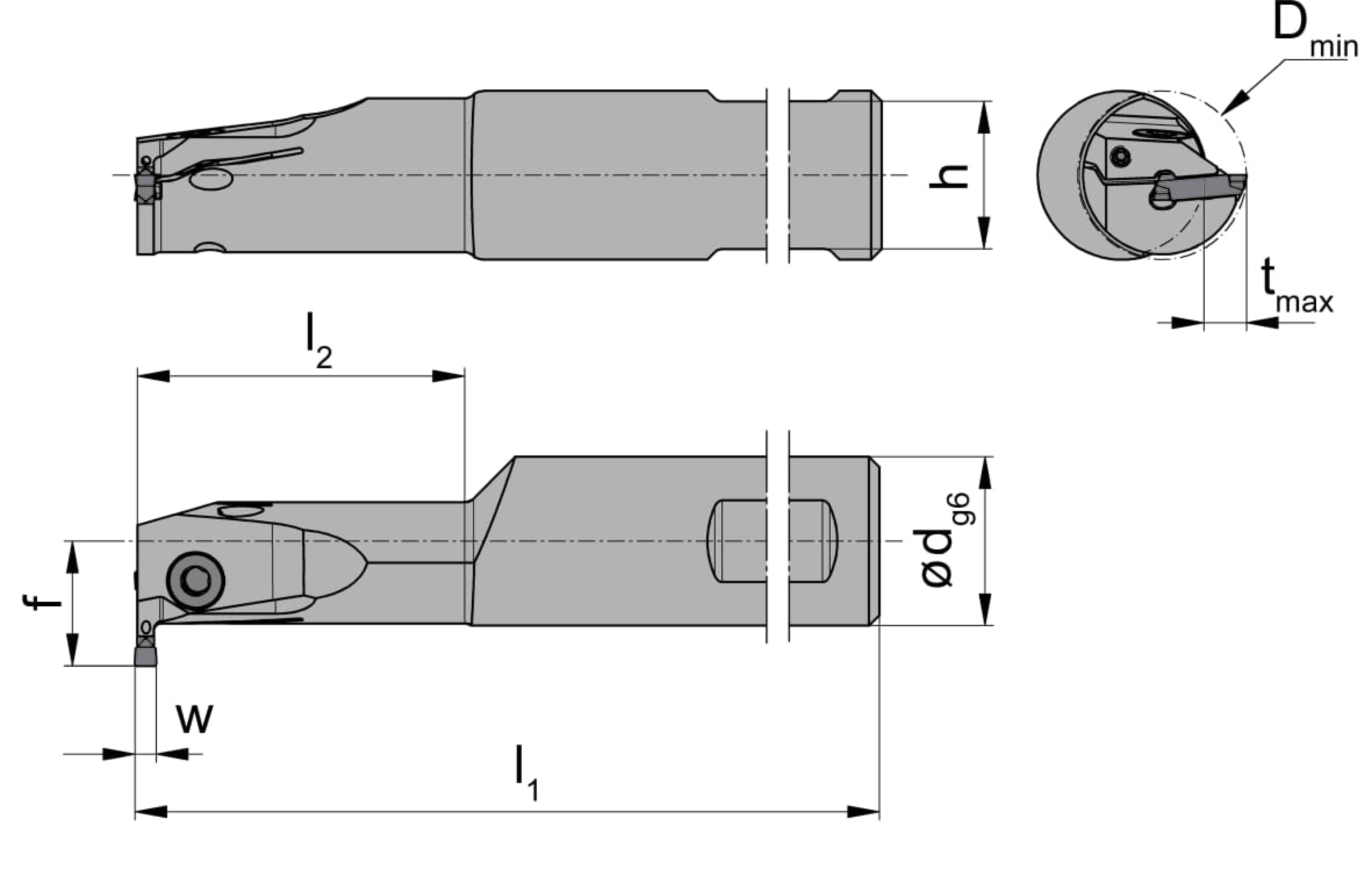

| Clamping_ shank diameter (d) | 25 |
|---|
| Distance of clamping surface (s) (h) | 23 |
|---|
| Maximum depth of groove (tmax) | 7.5 |
|---|
| Minimum drilling diameter (Dmin) | 25 |
|---|
| Plating seat size (Größe) | 25 |
|---|
| Shank, clamping diameter (d) | 25 |
|---|
| Total length (including cutting insert) (l1) | 150 |
|---|
| Total length (l) | 150 |
|---|
| Working length (l2) | 50 |
|---|
