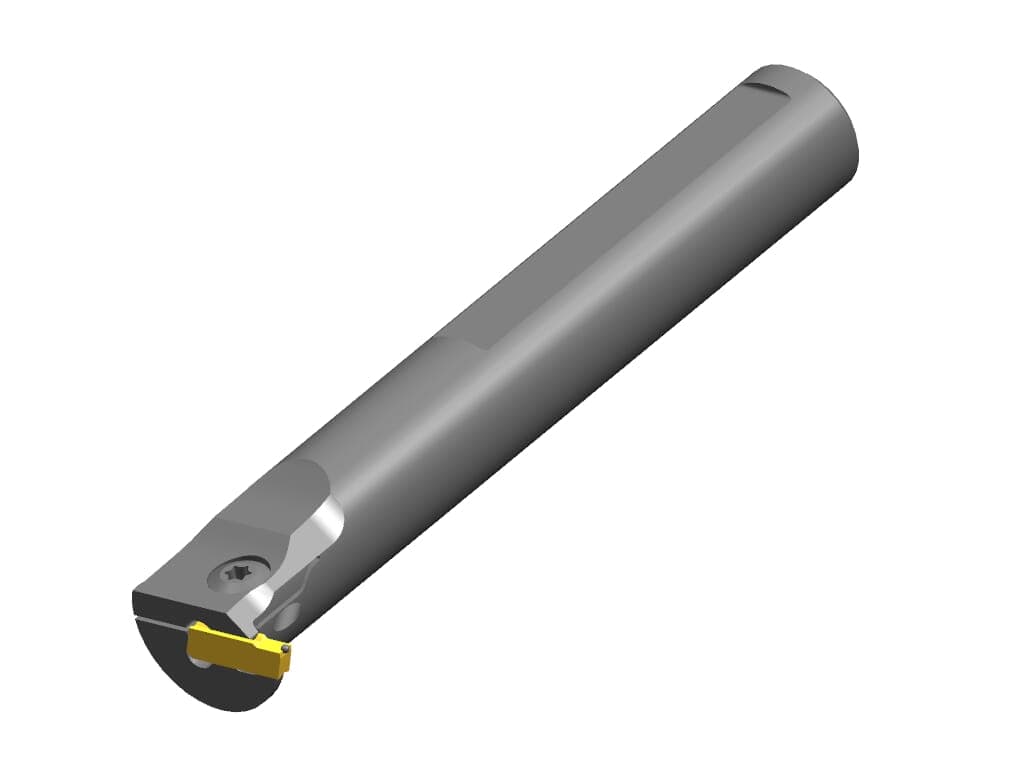

1 / 2: HORN RB223.0016.0.43
Internal bore contouring
Internal grooving
Internal cooling| Clamping range maximum (Spannbereich) | 3 |
|---|---|
| Clamping range minimum (Spannbereich) | 3 |
Henter tekniske filer …
Kategorier:System B223 Round shank
Henter matchende værktøj…
| Clamping_ shank diameter (d) | 16 |
|---|
| Distance of clamping surface (s) (h) | 14 |
|---|
| Maximum depth of groove (tmax) | 4.5 |
|---|
| Minimum drilling diameter (Dmin) | 22 |
|---|
| Plating seat size (Größe) | 3 |
|---|
| Shank, clamping diameter (d) | 16 |
|---|
| Total length (including cutting insert) (l1) | 110 |
|---|
| Total length (l) | 110 |
|---|
