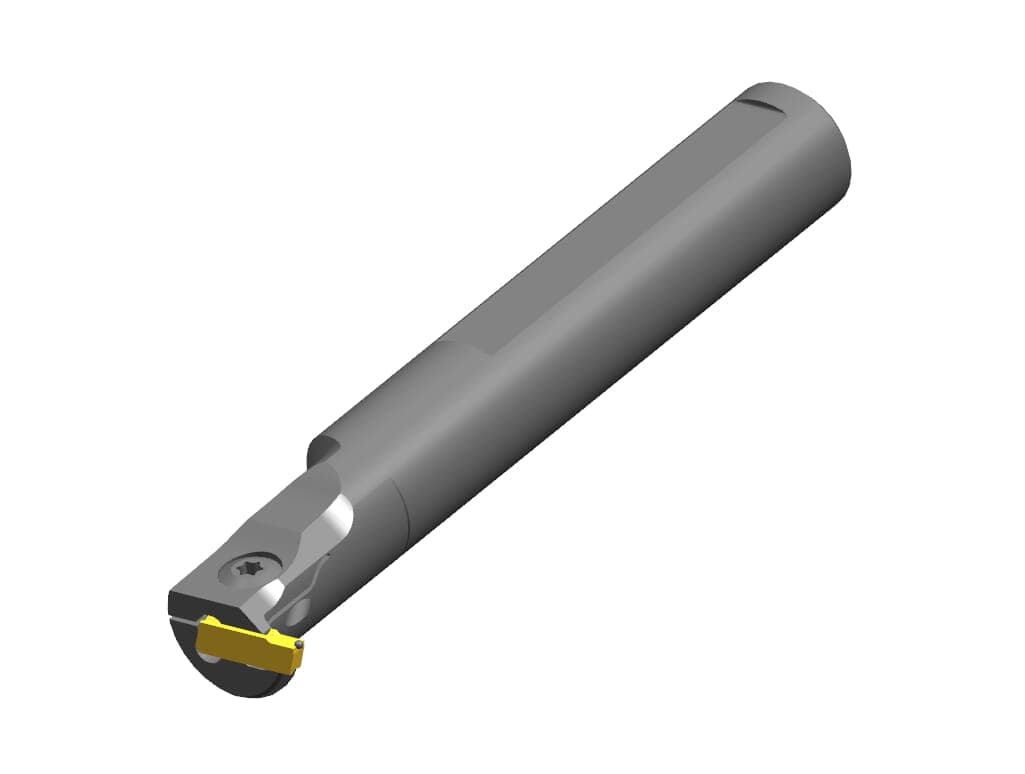

1 / 2: HORN RB223.0016.1.22
Internal bore contouring
Internal grooving
Internal cooling| Clamping range maximum (Spannbereich) | 2.99 |
|---|---|
| Clamping range minimum (Spannbereich) | 2 |
Henter tekniske filer …
Kategorier:System B223 Round shank
Henter matchende værktøj…
| Clamping_ shank diameter (d) | 16 |
|---|
| Distance of clamping surface (s) (h) | 14 |
|---|
| Maximum depth of groove (tmax) | 1.65 |
|---|
| Minimum drilling diameter (Dmin) | 18 |
|---|
| Plating seat size (Größe) | 2 |
|---|
| Shank, clamping diameter (d) | 16 |
|---|
| Total length (including cutting insert) (l1) | 110 |
|---|
| Total length (l) | 110 |
|---|
| Working length (l2) | 25 |
|---|
