| _application | /conversions/RH100161612IK_PICTO.JPG |
|---|---|
| _icon | abstechen_20210506_153854505.jpg; aussen_einstechen.jpg; ik_generell.jpg |
| _download | /documents/RH100161612IK_20210627_035608123.DXF; /documents/RH100161612IK_20230116_134920551.STP |
| _drawing | /conversions/100IK8_20161108_114700388.JPG |
| _main_image | /conversions/RH100161612IK.JPG |
| DIN_CCTWS | HORN-100020058N |
| DIN_CCTMS | VKT16160115 |
| Head length (including cutting edge) (l2) | 24 |
| ISO-CCTWS | HORN100020058N$$$$$ |
| ISO-CCTMS | VKT01A1616$$$$ |
| Head height (HK) | 25 |
| Head length top _including cutting edge_ (l2) | 28.5 |
| Maximum insertion depth (tmax a) | 16 |
| Katalog-CCTWS | 100028 |
| Maximum workpiece diameter (Da min) | 42 |

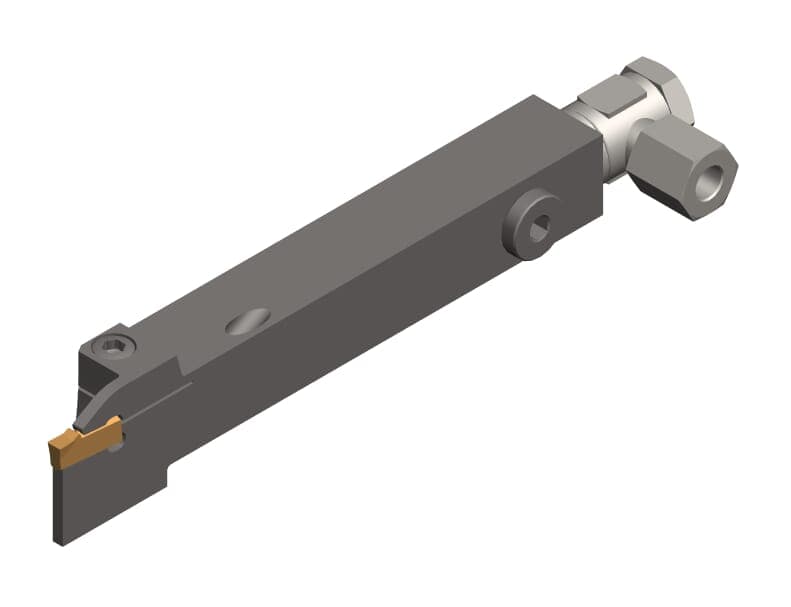

| productnr-sap | RH100161612IK |
| Total length (including cutting insert) (l1) | 125 |
| Shank width (b) | 16 |
| Shank height (h) | 16 |
| Form _Form_ | A |
| Size (Größe) | 2 |
| Peak height (h1) | 20 |
