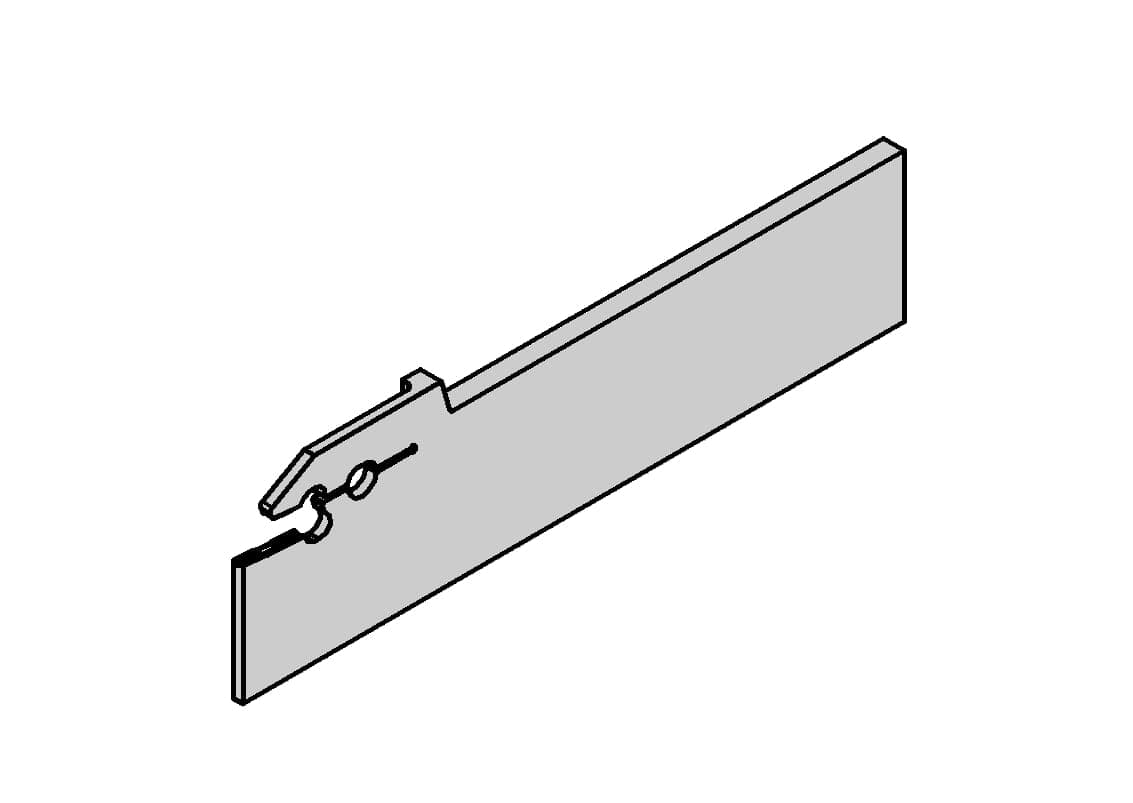

1 / 2: HORN RH100.2203.33
Parting-off
External grooving| Head height (HK) | 26.9 |
|---|---|
| Height clamping surface(s) (h) | 22.1 |
| Maximum insertion depth (tmax a) | 38 |
| Maximum workpiece diameter (Da min) | 76 |
| Peak height (h1) |
Henter tekniske filer …
Kategorier:System H100 Parting off blade
Henter matchende værktøj…
| 22.2 |
| Plating seat size (Größe) | 3 |
|---|
| Total length (including cutting insert) (l1) | 150 |
|---|
| Total length (l) | 150 |
|---|
| Width, thickness sword (b) | 3.2 |
|---|
