Toolholder System H100 with IC

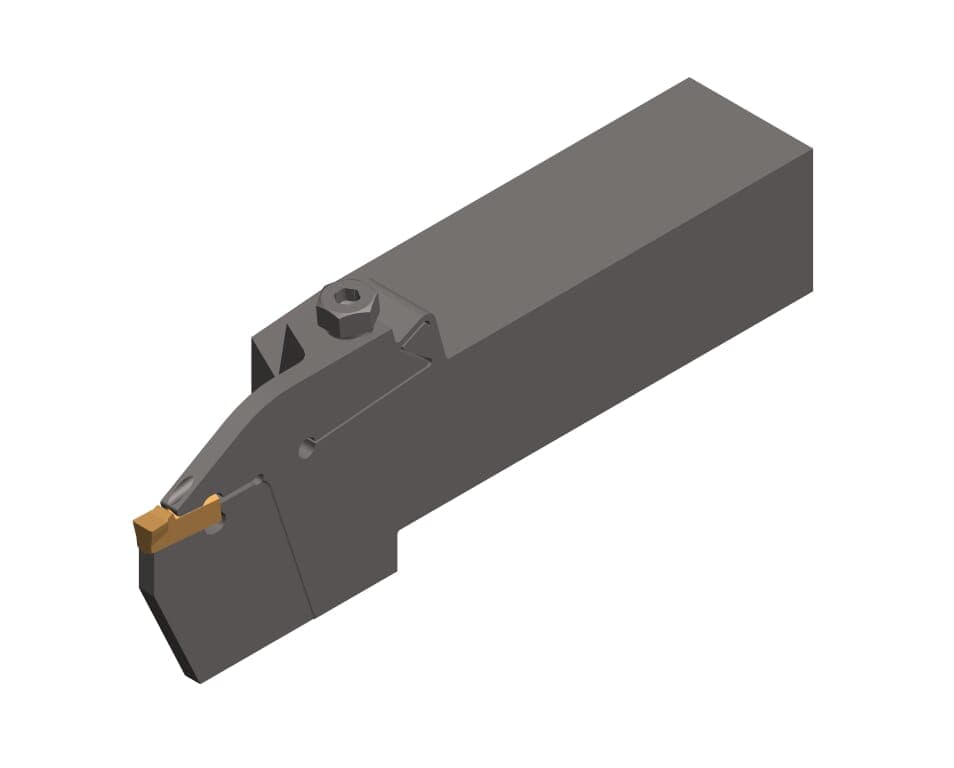

1 / 2: HORN RH100.2525.3.2.04 IK
Parting-off
External grooving
Internal cooling| Head length (including cutting edge) (l2) | 50 |
|---|---|
| Head length top _including cutting edge_ (l2) |
Henter tekniske filer …
Kategorier:Toolholder System H100 with IC
Henter matchende værktøj…
| 60 |
| Maximum insertion depth (tmax a) | 33 |
|---|
| Peak height (h1) | 32 |
|---|
| Shank height (h) | 25 |
|---|
| Shank width (b) | 25 |
|---|
| Size (Größe) | 4 |
|---|
| Total length (including cutting insert) (l1) | 134 |
|---|
| Total length (l) | 134 |
|---|
