System H100 Square shank with IC

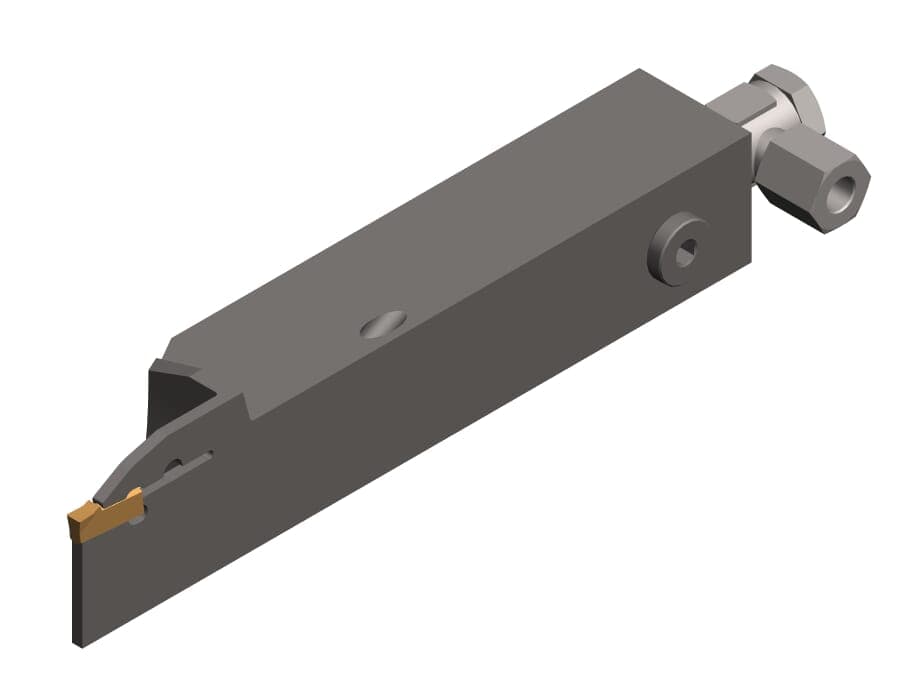

1 / 2: HORN RH100.2525.33.IK
Parting-off
External grooving
Internal cooling| Form _Form_ | B |
|---|---|
| Head height (HK) | 31.6 |
Henter tekniske filer …
Kategorier:System H100 Square shank with IC
Henter matchende værktøj…
| Head length top _including cutting edge_ (l2) | 38.5 |
|---|
| Maximum insertion depth (tmax a) | 32.5 |
|---|
| Maximum workpiece diameter (Da min) | 65 |
|---|
| Peak height (h1) | 25 |
|---|
| Shank height (h) | 25 |
|---|
| Shank width (b) | 25 |
|---|
| Size (Größe) | 3 |
|---|
| Total length (including cutting insert) (l1) | 150 |
|---|
| Total length (l) | 150 |
|---|
