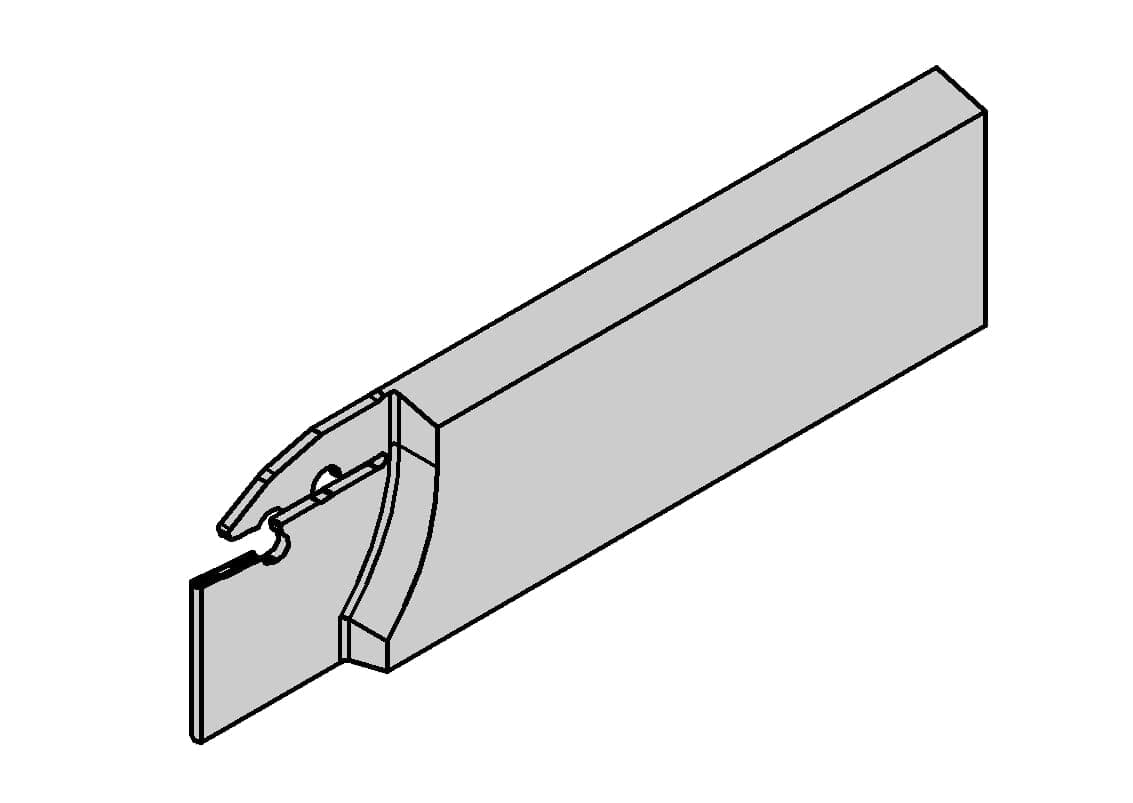

1 / 2: HORN RH100.2608.71
Parting-off
External grooving| Head height (h) | 26 |
|---|---|
| Head length top _including cutting edge_ (l2) | 33.8 |
| Maximum insertion depth (tmax a) | 25 |
| Maximum workpiece diameter (Da min) | 50 |
| Peak height (h1) |
Henter tekniske filer …
Kategorier:System H100
Henter matchende værktøj…
| 21.4 |
| Plating seat size (Größe) | 1 |
|---|
| Total length (including cutting insert) (l1) | 110 |
|---|
| Total length (l) | 110 |
|---|
| Width, thickness sword (b) | 7.9 |
|---|
