1 / 2: HORN RH100.3208.72

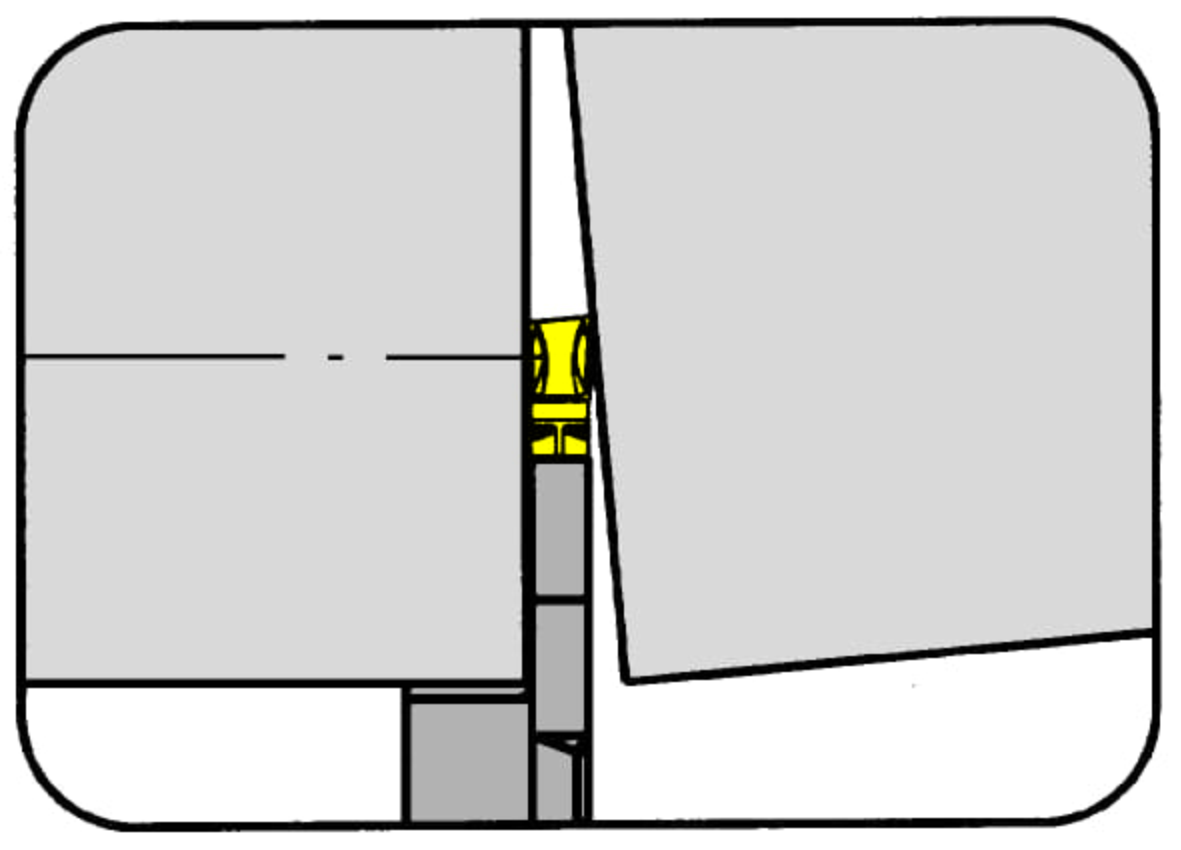

Parting-off| Head height (h) | 32 |
|---|---|
| Head length top _including cutting edge_ (l2) | 33.8 |
| Maximum insertion depth (tmax a) | 25 |
| Maximum workpiece diameter (Da min) | 50 |
| Peak height (h1) | 24.8 |
| Plating seat size (Größe) | 2 |
| Total length (including cutting insert) (l1) | 112 |
Henter tekniske filer …
Kategorier:System H100 Parting off blade
Henter matchende værktøj…
| Total length (l) |
|---|
| 112 |
| Width, thickness sword (b) | 7.9 |
|---|
