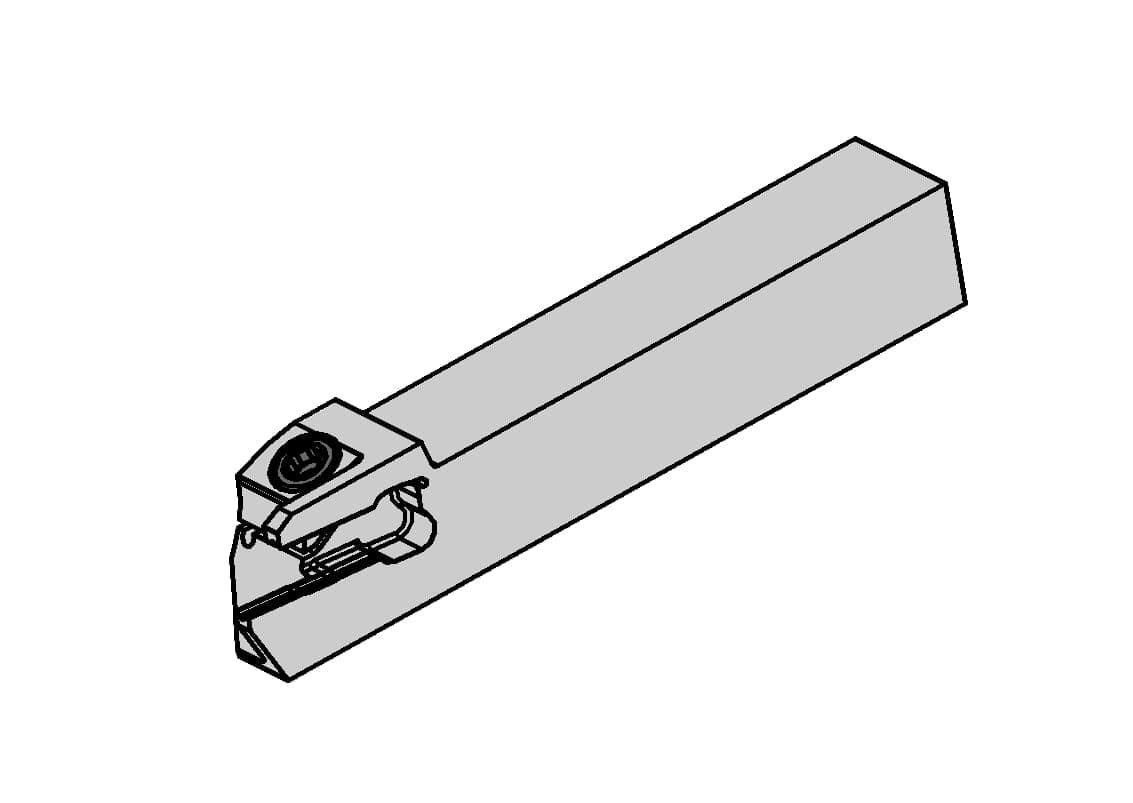

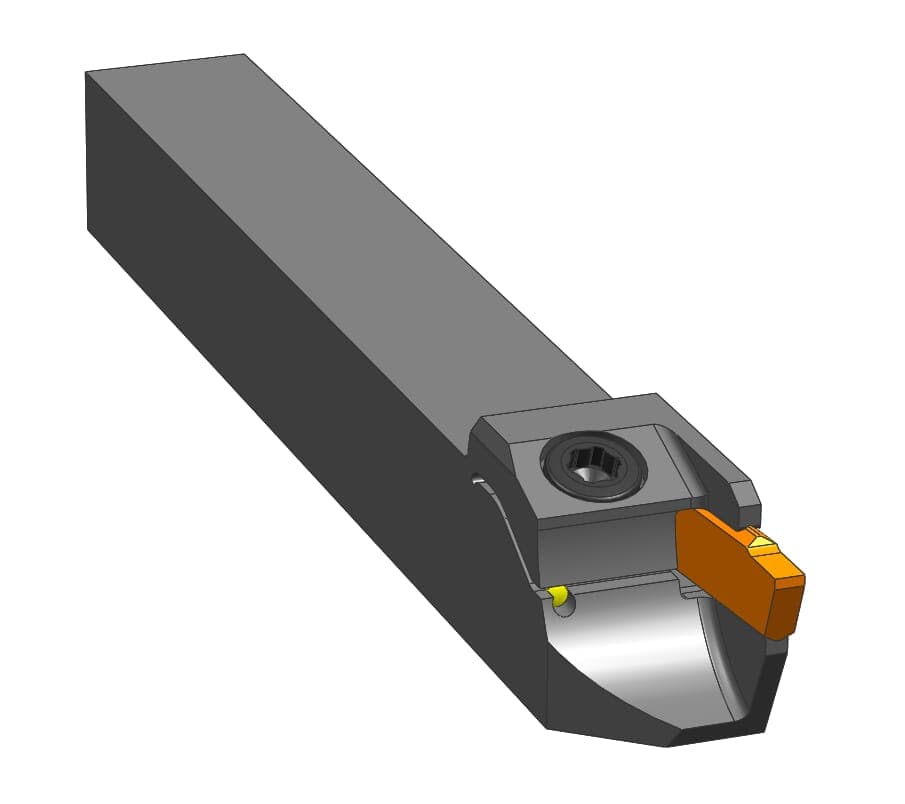

1 / 2: HORN RH224.1212.20.61 t-max 11,0 ø22
Grooving and side turning
Parting-off
External grooving| Clamping range maximum (Spannbereich) | 2.4 |
|---|---|
| Clamping range minimum (Spannbereich) | 2 |
Henter tekniske filer …
Kategorier:Toolholder System H224
Henter matchende værktøj…

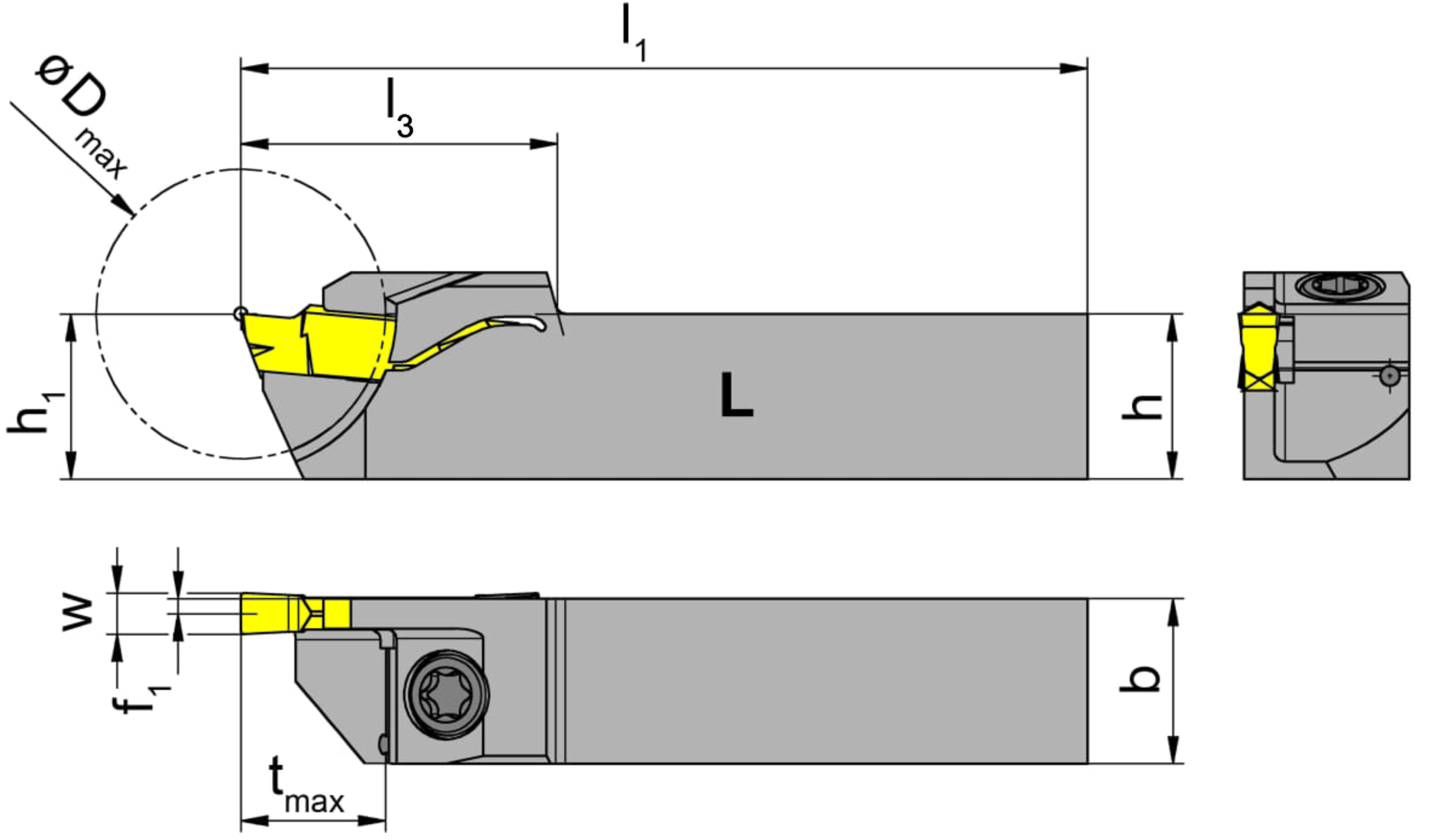

| Head length top _including cutting edge_ (l2) | 23 |
|---|
| Maximum insertion depth (tmax a) | 10.5 |
|---|
| Maximum workpiece diameter (Da min) | 21 |
|---|
| Peak height (h1) | 12 |
|---|
| Plating seat size (Größe) | 1 |
|---|
| Shank height (h) | 12 |
|---|
| Shank width (b) | 12 |
|---|
| Total length (including cutting insert) (l1) | 100 |
|---|
| Total length (l) | 100 |
|---|
