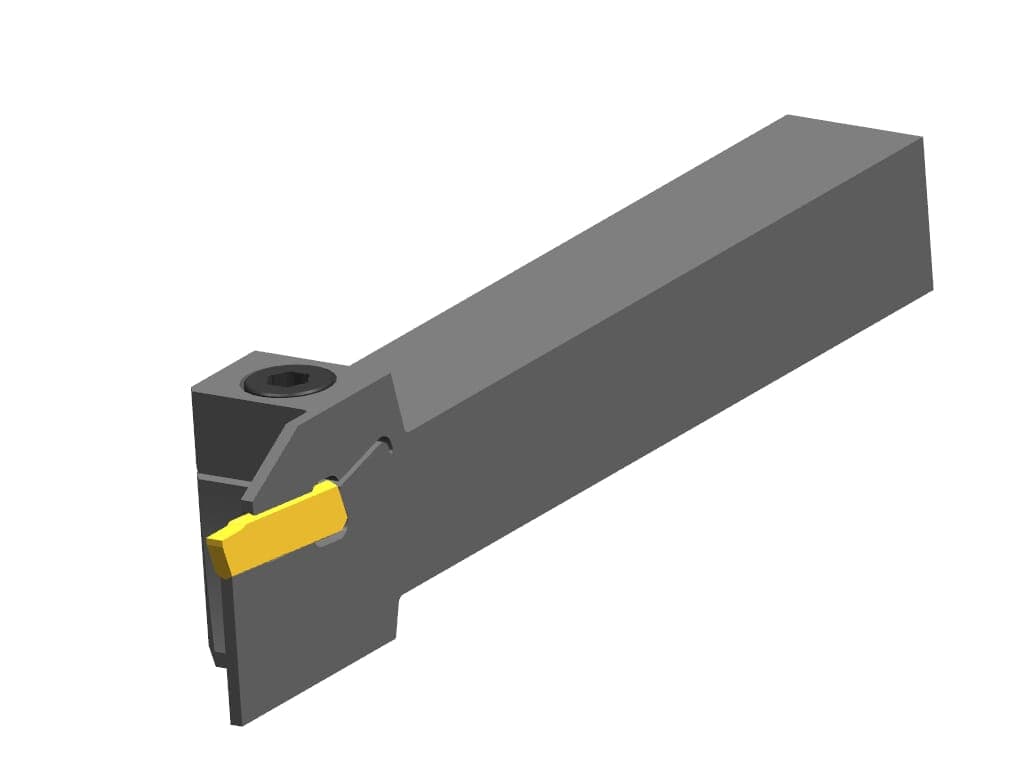

1 / 2: HORN RH224.2525.23
Grooving and side turning
Parting-off
External grooving| Clamping range maximum (Spannbereich) | 3.7 |
|---|---|
| Clamping range minimum (Spannbereich) | 2.8 |
Henter tekniske filer …
Kategorier:Toolholder System H224
Henter matchende værktøj…

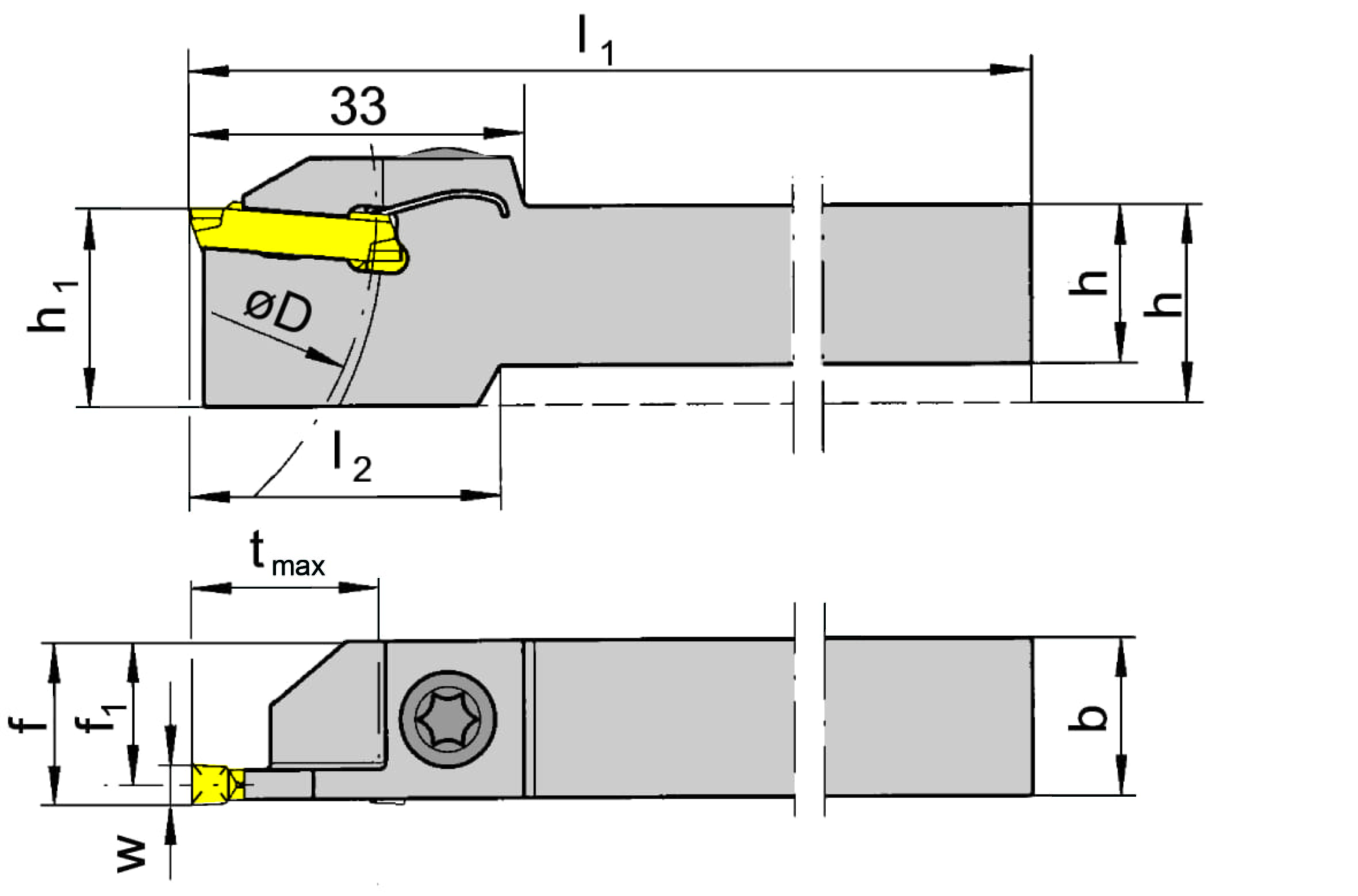

| Maximum insertion depth (tmax a) | 18 |
|---|
| Maximum workpiece diameter (Da min) | 80 |
|---|
| Peak height (h1) | 25 |
|---|
| Plating seat size (Größe) | 3 |
|---|
| Shank height (h) | 25 |
|---|
| Shank width (b) | 25 |
|---|
| Total length (including cutting insert) (l1) | 150 |
|---|
| Total length (l) | 150 |
|---|
